€ 344,40
1-2 weeks delivery time
-
+
The BEP 720-MDVSO is a heavy-duty dual-operation battery switch for 12/24V systems rated at 500A continuous, offering built-in or surface mounting, spark protection, copper-tinned bolts, and optional remote control for reliable and safe power management.
- Description
- Ask a Question
-

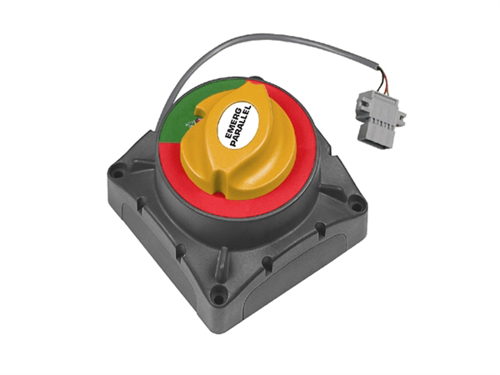

BEP 720-MDVSO - Dual Operation VSS Switch HD Optic 12/24V 500A
This robust switch offers reliable dual operation with both built-in and surface mount installation options. It features spark protection and copper-tinned bolts and nuts to ensure durability and safety in heavy-duty applications.
- Operation: On / Off
- Installation: Built-in or surface mount
- Spark protected design
- Copper tinned bolts and nuts
- Power consumption:
- Switch Off: 12 mAmp
- Switch On: 15 mAmp
- Switch operation: 120 mAmp for 3 seconds at 12 Volt
- Optional remote control available
- Power continuous rating: 500 A
- Power rating for 5 minutes: 700 A
- Power rating for 10 seconds: 2500 A
- Voltage range: 12-24 Volts
- Dimensions (LxWxH): 102 x 102 x 110 mm
- Connections: 2 x 12mm
- Suitable for cable thickness up to 95 mm²
- Model number: 720-MDVSO
- Order number: 00598843
- Supplier code: 720-MDVSO
- Barcode: 843687004783
-
