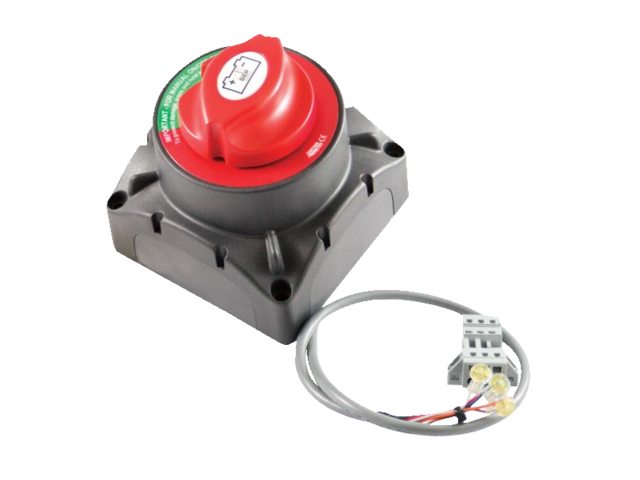

BEP 720-MDO - Battery Switch Remote Operated with Optical Sensor On/Off 9,5V - 32V
Article Number: 14452182
The 720-MDO model supports switching between various voltage circuits, such as a 48V bow thruster battery bank and a 24V service battery. Its optical sensor automatically adjusts for 12V or 24V systems and suits heavy-duty applications.
- Studs: 12mm
- Voltage range: 9,5V - 32V
- Continuous/Max Amp: 500A / 2500A
- Dimensions (L x W x H): 102 x 102 x 110 mm
- Max. cable: 95mm²
- Can switch plus or minus wire
- Main contacts isolated from control circuit for operation from another battery source
- Static current draw switched off: <15mA
- Static current draw switched on + remote LED: <25mA
- Switching current: <150mA
-
