SKU:
TN 00598798
€ 109,35
1-2 weeks delivery time
-
+
The BEP 710-140A Digital Voltage Sensing Relay enables efficient charging of multiple battery banks from a single source, protects start batteries, offers low power consumption, and supports 12V/24V automatic operation with ignition protection.
- Description
- Ask a Question
-

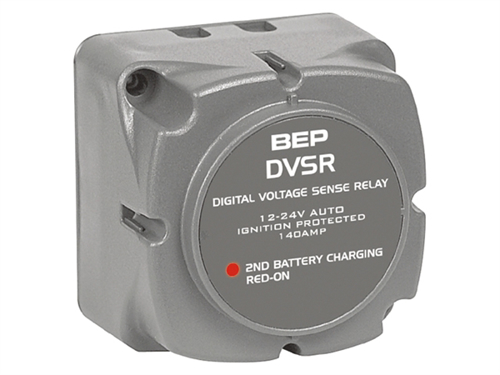

BEP 710-140A - DVSR 12/24V 140 Amp Digital Voltage Sensing Relay
The BEP Digital Voltage Sensing Relay (DVSR) allows safe and efficient charging of a secondary battery bank from a single charging source. It automatically connects and disconnects battery banks based on voltage levels, protecting engine start batteries and optimizing charge distribution. The advanced digital circuitry ensures low power consumption and improved performance, with options for remote sensing and standby mode.
- Enables charging of two or more independent battery banks from one source
- Charges engine start batteries first before combining auxiliary bank charging
- Prevents flattening of start batteries due to domestic loads
- Isolates electronics from electrical surges caused by starter motors

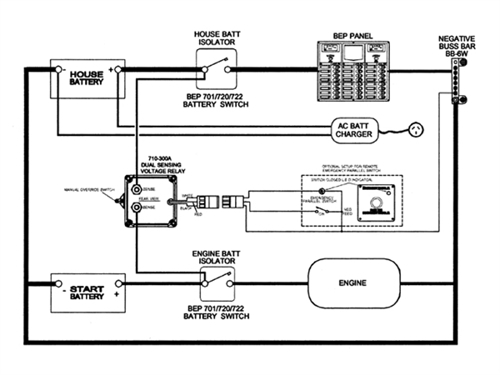

- Simple 3-wire installation maintaining alternator wiring
- No voltage drop unlike diode isolators
- Ignition protected and suitable for surface or panel mounting
- Automatically selects 12V or 24V DC operation
- Remote status LED output available
- Replaces previous models 710-125A and 710-125A-DS
- Very low power consumption thanks to digital design
General:
- Order number: 00598798
- Supplier code: 710-140A
- Barcode: 843687004745
- Product width: 69 mm
- Product height: 50 mm
- Product depth: 69 mm
- Power control: 125 A
- Maximum flow current: 140 A
-
