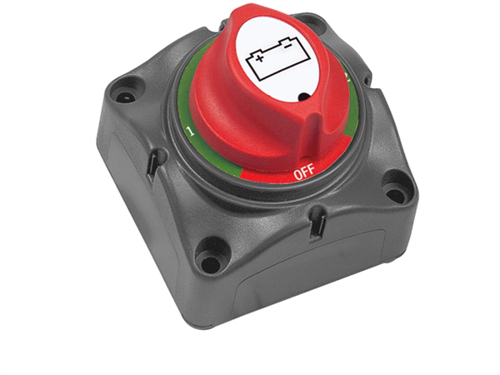

BEP 701S - Battery Switch 200A 1-2-Both-Off
The BEP 701S Battery Switch is a compact and reliable selector switch for separating two batteries in isolated battery systems. It meets strict marine battery switch test standards and offers high current handling capacity, making it a safe and economical choice for battery management.
- Voltage rating: 48 Volts
- Continuous power rating: 200 A
- 10-second power rating: 1000 A
- 5-minute power rating: 300 A
- Dimensions (L x W x H): 69 x 69 x 75 mm
- Connections: 3 x 8 mm
- Suitable for cable thickness up to 50 mm²
- Tin-plated copper studs and nuts for durability
- Ignition-protected design
- Includes removable side plates and back cover
- Order number: 00598694
- Supplier code: 701S
- Barcode: 870216001968
-
