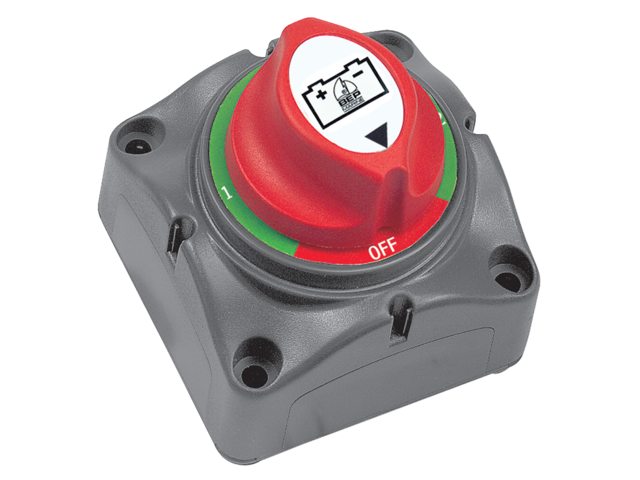

BEP 701S - Battery Selector Switch 1-2-Both-Off 12V - 48V
Article Number: 14452172
This compact selector switch also employs the contour system, enabling flexible installation standalone, linked with other switches, or with the DVSR relay (14.452.188). It features three removable side panels for cable connection access and a protective back panel to prevent short circuits. Designed to switch between two batteries, or connect them in parallel.
- Manufacturer Number: 701S
- Description: 1/2/1+2/off selector
- Studs: 3 x 8mm
- Voltage: 12V - 48V
- Current: 200A continuous / 1000A max
- Dimensions: 69 x 69 x 75 mm
- Max cable size: 50 mm²
- Mounting hole: 52 mm
-
