€ 44,44
1-2 weeks delivery time
-
+

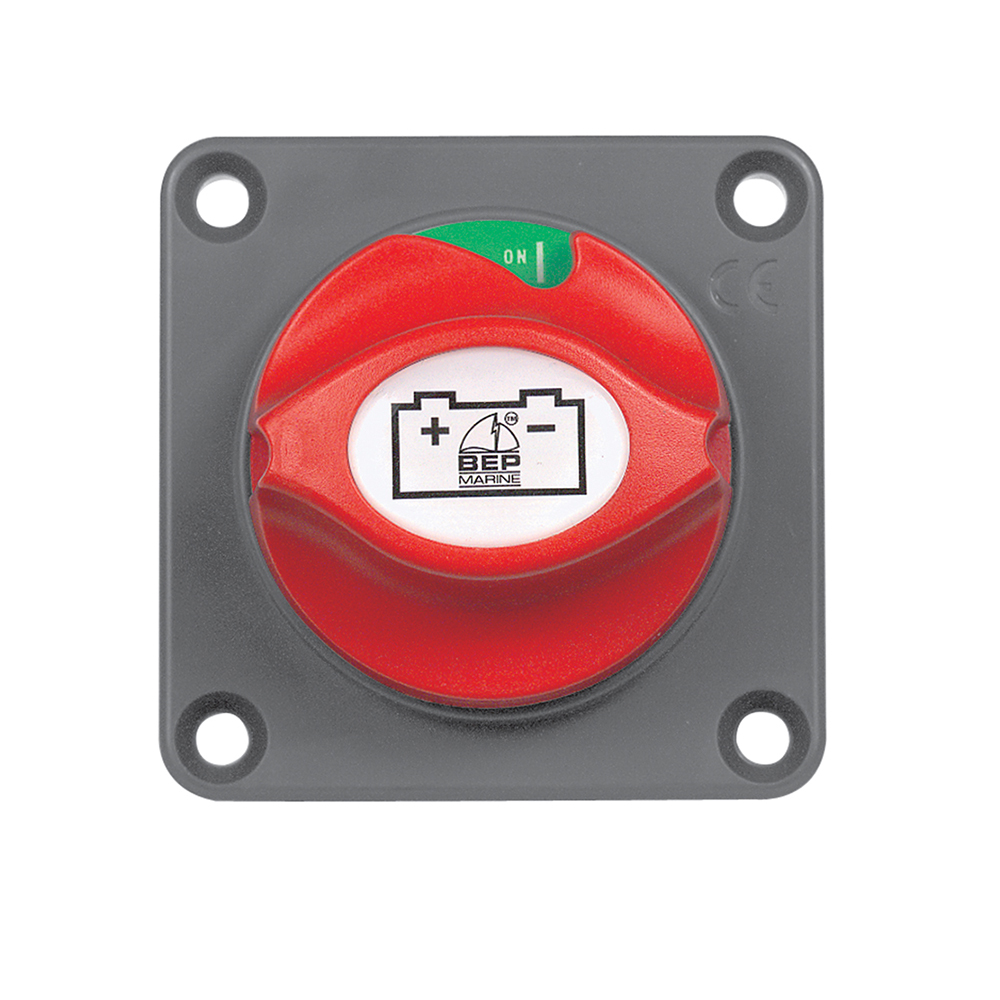

BEP 701-PM is a main switch designed for panel mount applications with a compact, lightweight design. It features removable keys, countersunk recesses, and a high-temperature fiber-reinforced plastic housing, fitting a 52 mm hole and suitable for 95 mm² cables.
- Description
- Ask a Question
-
BEP 701-PM - Main Switch 275 Panel Mount
Designed for panel mount applications, this main switch offers a compact and versatile solution. Its lightweight design includes removable keys and countersunk recesses for a flush surface installation. It fits the standard 2-1/16" (52 mm) hole and provides full cable access through captive inserts for 3/16" (4.8 mm) nuts. The switch housing is made from high-temperature fiber-reinforced plastics, ensuring durability.
- Order number: 00598679
- Supplier code: 701-PM
- Barcode: 870216005355
- Main switch power ratings:
- Continuous: 275 A
- 5 minutes: 455 A
- 10 seconds: 1250 A
- Voltage: 48 Volts
- Dimensions (L x W x H): 69 x 69 x 67 mm
- Connections: 2 x 10 mm
- Model: 701
- Suitable for cable thickness: 95 mm²
-
