SKU:
TN 00598842
€ 275,11
1-2 weeks delivery time
-
+
The BEP 701-MDVS is a motorized voltage-sensitive battery switch with an isolation relay that automatically connects or disconnects batteries based on voltage levels to optimize performance and prevent battery depletion, suitable for 12V systems with a 275A rating.
- Description
- Ask a Question
-

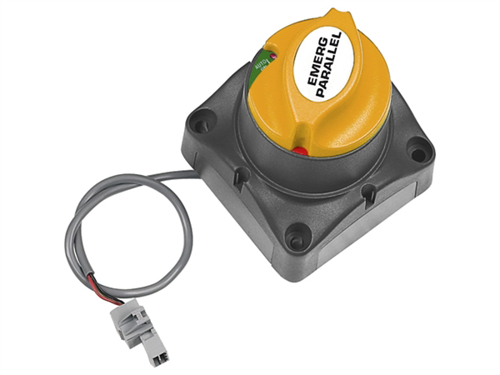

BEP 701-MDVS - Dual Voltage Sensitive Battery Switch 12V 275A
The BEP 701-MDVS is a high-current motorized voltage-sensitive switch featuring an isolation relay. It automatically connects or disconnects batteries based on voltage levels to optimize battery performance and prevent depletion.
- Motor-driven main battery switch with isolation relay functionality.
- Automatically connects batteries in parallel when voltage reaches 13.7 V.
- Opens contacts after 5 seconds if voltage drops below 13.0 V and engine is off.
- Maintains open contacts until voltage rises above 13.7 V.
- With engine running, opens contacts after 5 minutes if combined voltage falls below 12.2 V.
- Batteries remain connected when voltage is between 12.2 V and 13.0 V with engine running.
- Order number: 00598842
- Supplier code: 701-MDVS
- Barcode: 870216038285
- Power continuous: 275 A
- Power 5 minutes: 455 A
- Power 10 seconds: 1250 A
- Voltage: 12 Volts
- Dimensions (LxWxH): 69 x 69 x 101 mm
- Connections: 2 x 10 mm
- Suitable for cable thickness: 95 mm²
-
