The BEP 701-MD is a remote-operated battery switch for 32V systems with 275A continuous rating, ideal for reducing cable length and cost by mounting near the battery. It includes manual takeover, LED status indication, and complies with CE standards.
- Description
- Ask a Question
-

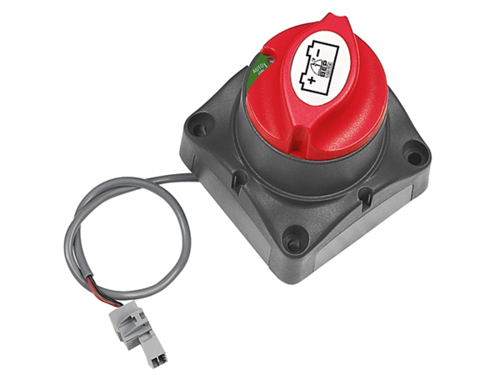

BEP 701-MD - Battery Switch Remote Operated On/Off 32V 275A Continuous
The BEP 701-MD series is designed for modern ships with multiple pantographs and high copper cable costs, allowing the battery disconnect switch to be mounted close to the battery. This design reduces cable length and thickness, resulting in significant cost savings. It is also ideal for remote shutdown of bow thrusters.
- Remotely controlled operation for convenience.
- Battery switch placement near the battery minimizes cable length and thickness, cutting cable costs.
- Short battery cable length decreases connection time and overall installation expenses.
- Manual takeover capability complies with CE standards.
- LED indicator shows remote switch status.
- Maintains the same capacity, specifications, and mounting options as standard BEP battery switches.
- Interchangeable labels consistent with BEP switch models.
- Operation: On / Off
- Mounting: Built-in or surface-mounted
- Spark protected
- Copper tinned bolts and nuts for durability
- Power consumption: Off - 12 mAmp, On - 15 mAmp, Switch control - 120 mAmp (3 seconds at 12 V)
- Order number: 00598840
- Supplier code: 701-MD
- Barcode: 870216038278
- Power continuous: 275 A
- Power 5 minutes: 455 A
- Power 10 seconds: 1250 A
- Voltage: 9.5 - 32 Volts
- Dimensions (LxWxH): 69 x 69 x 101 mm
- Connections: 2 x 10 mm
- Suitable for cable thickness: 95 mm²
-
