SKU:
CN AC-A2K-SBN-1
€ 143,51
1-2 weeks delivery time
-
+
The Self-Contained Boat Network - 4-way from Actisense optimizes small NMEA 2000® networks by integrating four T-pieces into a single compact unit. Built-in termination resistors save installation time and space, while the durable components ensure long-lasting performance in harsh marine environments.
- Description
- Ask a Question
-

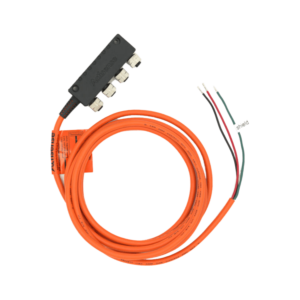

Self-Contained Boat Network - 4-way
Enhance the efficiency of your small NMEA 2000® networks with the Self-contained Boat Network (SBN-1) from Actisense. This product combines the functionality of four T-pieces into a single compact unit, offering significant time and space savings. No need to connect multiple T-pieces together, and with built-in termination resistors, you save even more time and space.
- Electrical
- Rated Current: 3 A
- Rated Voltage: 60 V (AC/DC)
- Internal Termination Resistors: 2 x 121Ω 250mW
- Mechanical
- Female Contact: Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarisation: Standard M12 - "A" - polarisation
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, black
- Housing: TPU, Black, Halogen Free
- Flammability Rating: UL94 V-0
- Internal Housing Shield: Copper Foil
- Cable Jacket Material: 0.8mm Nom. PVC, orange
- Cable Outer Diameter: 6.8mm
- Cable Length: 3m
- Wire Length: 140mm (10mm stripped and tinned)
- Wire Jacket: PVC, Red & Black
- Power Wires: 16 AWG
- Shield (Drain) Wire: 18 AWG
- Cable Shield: Al-mylar
- Weight: 360g
- Electrical
-
