SKU:
TN 00632804
€ 536,68
1-2 weeks delivery time
-
+
The Quick Receiver 8-Channel R08+ at 869.8 MHz allows control of devices or accessories with microcontroller management and FSK modulation. Installation requires dry vertical mounting above waterline, with protections against polarity reversal and low battery, storage for 50 transmitters, and programmable digital filtering with external antenna support.
- Description
- Ask a Question
-

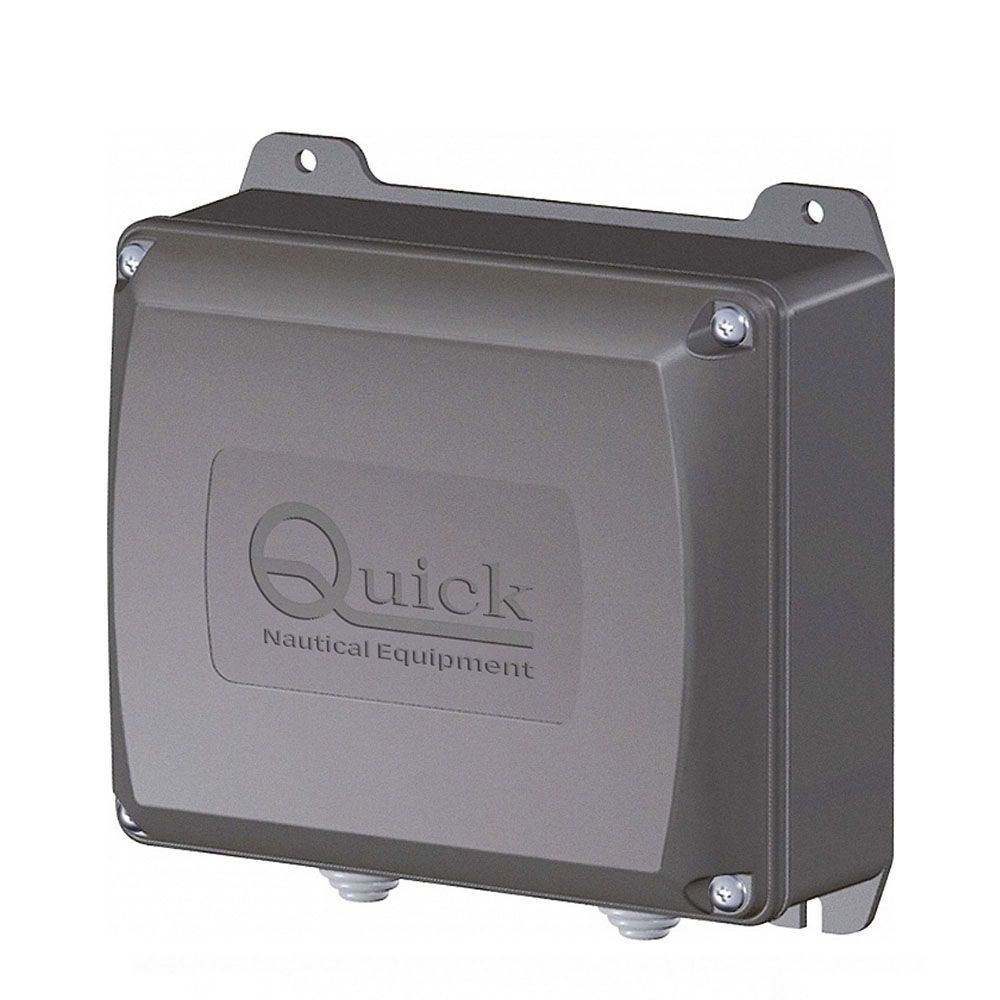

Quick Receiver 8-Channel R08+, 869.8MHz
The 8-channel Quick Receiver in the + series functions at 869.8 MHz and pairs with a Quick transmitter operating on the same frequency to control devices or accessories effectively.
- Must be installed in dry locations away from motors or electric generators to avoid interference.
- Requires vertical mounting 1 meter above waterline; an external antenna is necessary when placed inside metal structures.
- Features microcontroller control and FSK modulation at 869.8 MHz.
- LEDs and seven-segment display show system status and error notifications.
- Includes reverse polarity and low battery protection.
- Can store 50 transmitters and supports translation mode for multiple receivers controlled by a single transmitter.
- Programmable digital filter and external 869.8 MHz antenna connection are included.
- Number of channels: 8
- Power supply: 10.5 to 31 Volts DC
- Dimensions (WxHxD): 145 x 123 x 61.4 mm
- Weight: 315 grams
- Operating temperature range: -15 to +70 °C
- Maximum current: 15 Amp.
- Protection rating: IP55
- Order number: 00632804
- Supplier code: FRRRCR08P000A00
-
