SKU:
TN 00632802
€ 496,76
1-2 weeks delivery time
-
+
The Quick Receiver 6-Channel R06+ at 869.8 MHz is designed for remote control of multiple devices, requiring dry, vertical mounting above water. It features microcontroller control, reverse polarity and battery protection, supports 50 transmitters, and includes a programmable digital filter and optional external antenna connection.
- Description
- Ask a Question
-

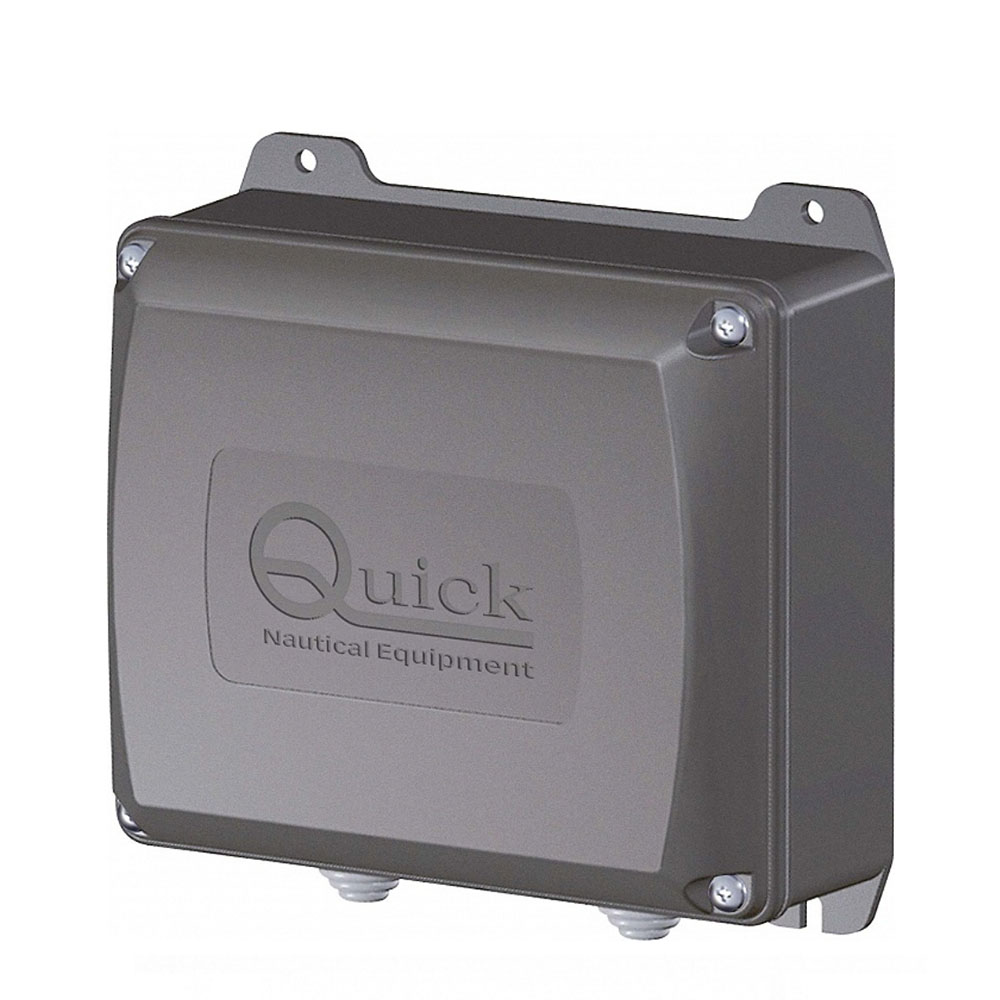

Quick Receiver 6-Channel R06+, 869.8MHz
This 6-channel Quick Receiver, also operating at 869.8 MHz, is designed to work with Quick transmitters of the same frequency, providing reliable control of multiple devices or accessories remotely.
- Installation in dry areas is required, avoiding motors and electric generators to prevent electromagnetic interference.
- Must be mounted vertically, 1 meter above waterline, with an external antenna recommended if mounted inside metal structures.
- Equipped with microcontroller control and FSK modulation at 869.8 MHz.
- Operational status and errors are indicated by LEDs and a seven-segment display.
- Includes reverse polarity protection and safeguards against battery depletion.
- Supports storing 50 transmitters and translation mode for controlling multiple receivers from one transmitter.
- Programmable digital filter and external antenna connection at 869.8 MHz included.
- Number of channels: 6
- Power supply: 10.5 to 31 Volts DC
- Dimensions (WxHxD): 145 x 123 x 61.4 mm
- Weight: 315 grams
- Operating temperature range: -15 to +70 °C
- Maximum current: 15 Amp.
- Protection rating: IP55
- Order number: 00632802
- Supplier code: FRRRCR06P000A00
-
