SKU:
TN 00632801
€ 366,66
1-2 weeks delivery time
-
+
The Quick Receiver 4-Channel R04+ at 869.8 MHz offers remote control of devices with microcontroller control and FSK modulation. It requires dry, vertical installation above waterline and includes protections against reverse polarity and low battery, programmable filters, and supports up to 50 transmitters with external antenna connectivity.
- Description
- Ask a Question
-

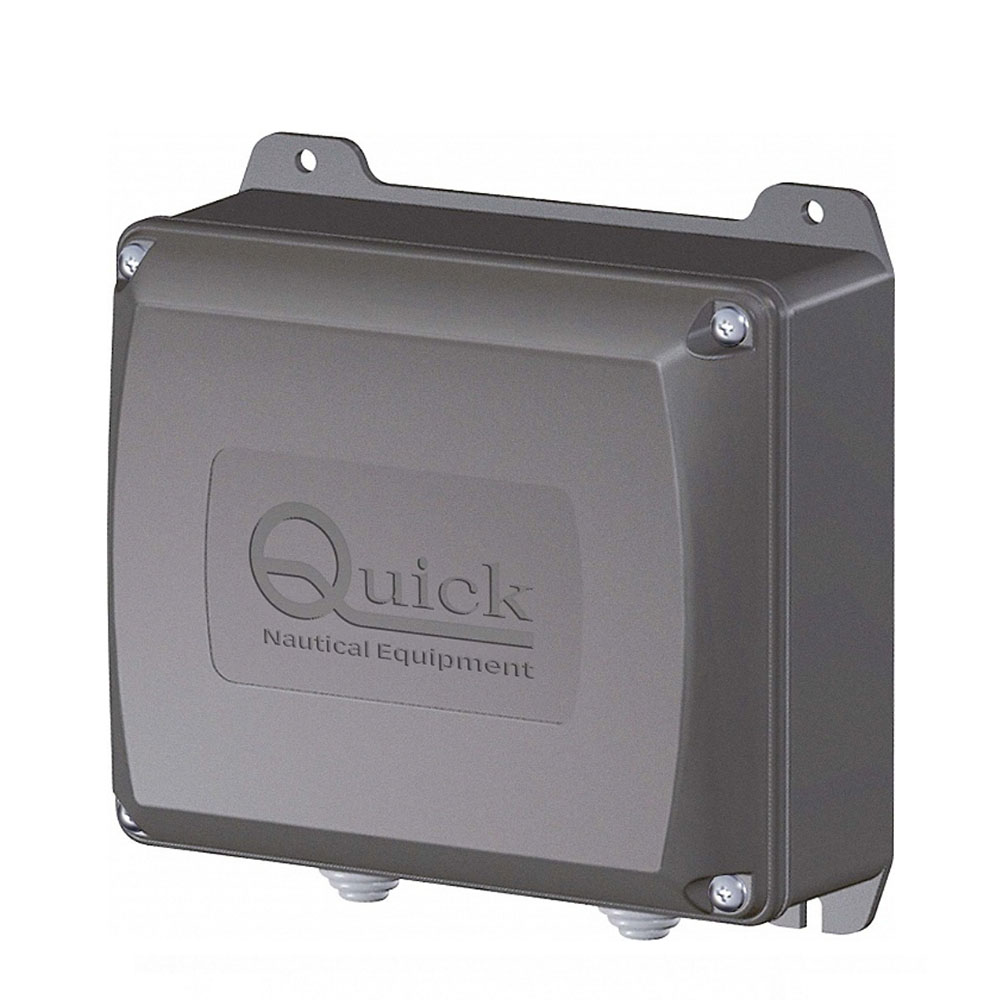

Quick Receiver 4-Channel R04+, 869.8MHz
This Quick Receiver model with 4 channels operates at 869.8 MHz and pairs seamlessly with a compatible Quick transmitter on the same frequency. It allows efficient remote control of devices or accessories.
- Designed for dry environments, away from motors or electric generators to avoid interference.
- Requires vertical mounting at least 1 meter above the waterline due to built-in antenna.
- If installed in metal structures, an external antenna option is necessary.
- Microcontroller-managed functions with FSK modulation at 869.8 MHz.
- System status, errors, and issues are displayed via LED indicators and a seven-segment display.
- Features reverse polarity and low battery protections.
- Stores up to 50 transmitters and supports translation mode to control multiple receivers with one transmitter.
- Includes a programmable digital filter and connection for an external 869.8 MHz antenna.
- Number of channels: 4
- Power supply: 10.5 to 31 Volts DC
- Dimensions (WxHxD): 145 x 123 x 61.4 mm
- Weight: 270 grams
- Operating temperature range: -15 to +70 °C
- Maximum current: 15 Amp.
- Protection rating: IP55
- Order number: 00632801
- Supplier code: FRRRCR04P000A00
- Barcode: 8057090255393
-
