The Quick Receiver 2-Channel R02+ at 869.8 MHz communicates with Quick transmitters and requires dry installation away from electromagnetic interference. It includes microcontroller control with FSK modulation, stores up to 50 transmitters, features reverse polarity and battery safeguards, and supports an external antenna connection.
- Description
- Ask a Question
-

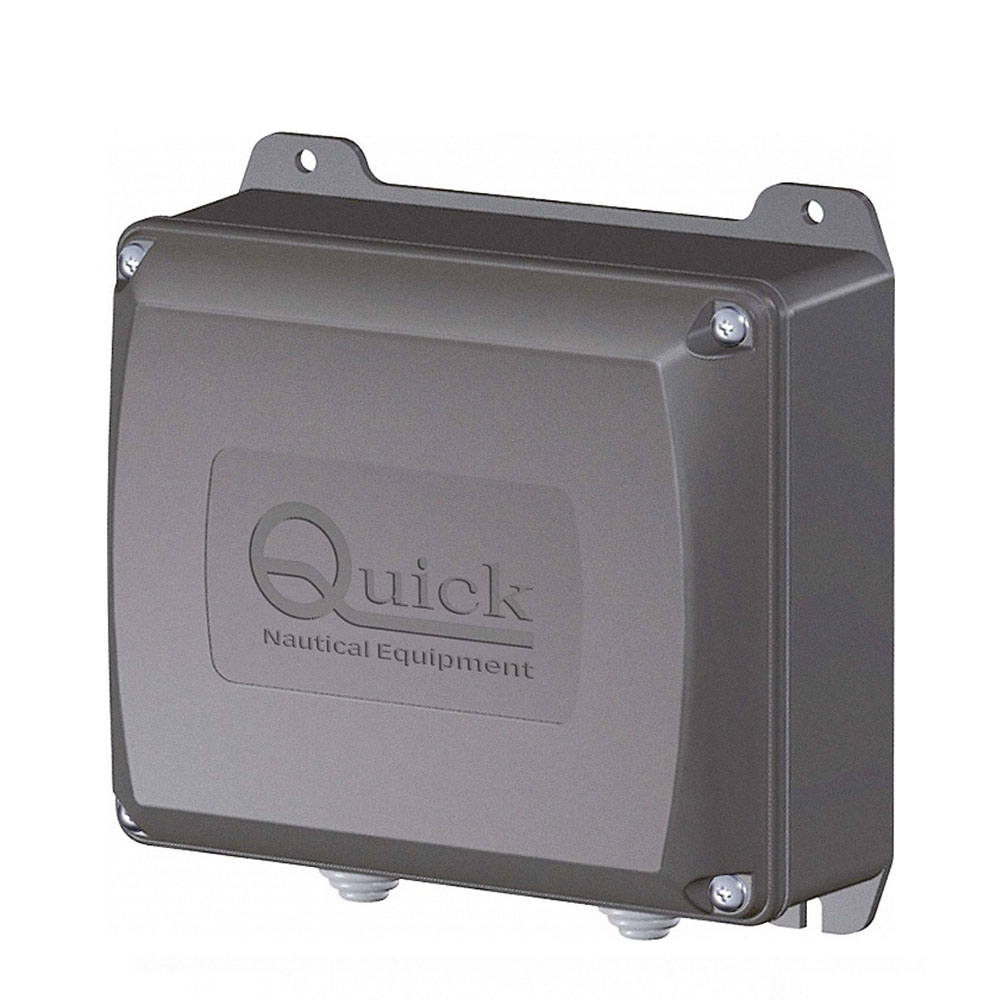

Quick Receiver 2-Channel R02+, 869.8MHz
The Quick Receiver 2-Channel R02+ from the + series communicates at 869.8 MHz and pairs with corresponding Quick transmitters to manage connected devices. Installation requires a dry environment away from electromagnetic disturbances such as motors or generators. Vertical mounting at least 1 meter above waterline is recommended due to the built-in antenna, and an external antenna is advised when mounted inside metal structures.
- Microcontroller-controlled functions with FSK modulation at 869.8 MHz
- Status, error, and problem indication via LED and seven-segment display
- Reverse polarity protection and battery level safeguard
- Stores up to 50 transmitters
- Translation mode to control multiple receivers with one transmitter
- Programmable digital filter
- Connector for external 869.8 MHz antenna
- Channels: 2
- Frequency: 869.8 MHz
- Voltage range: 10.5 to 31 Volts DC
- Dimensions (WxHxD): 145 x 123 x 61.4 mm
- Weight: 270 grams
- Operating temperature: -15 to +70 °C
- Maximum power: 15 Amps
- IP rating: IP55
- Order number: 00632800
- Supplier code: FRRRCR02P000A00
- Barcode: 8057090255362
-
