The Quick Receiver 2-Channel 10.5-31V/15A at 433 MHz supports microcontroller-controlled device management with FSK modulation, LED displays for status and errors, and protection against reverse polarity and low battery. It can be activated by multiple receivers from one transmitter and optionally supports an external antenna.
- Description
- Ask a Question
-

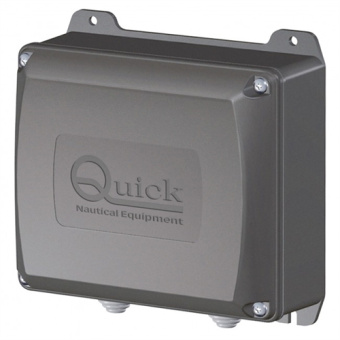

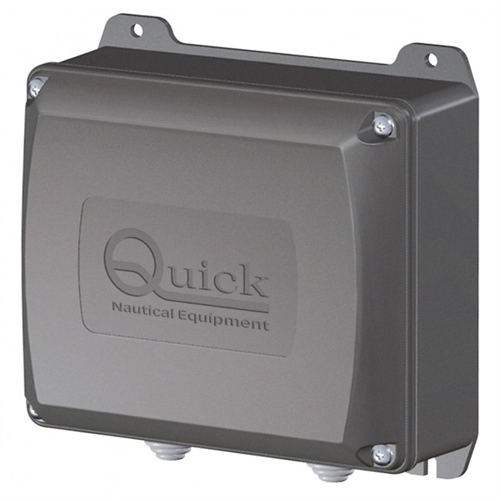

Quick Receiver 2-Channel 10.5-31V/15A - 433MHz
This 2-channel Quick Receiver runs on 434.420 MHz and supports control of devices via a microcontroller with FSK modulation. It features LED and seven-segment displays to indicate operational status, errors, or faults. It safeguards against reverse polarity and low battery voltage. The receiver supports multiple remote activations from a single transmitter and can be optionally fitted with an external antenna.
- Microcontroller-controlled functions with FSK modulation
- LED and seven-segment display for system status and error indication
- Protection against polarity reversal and low battery voltage
- Supports activation of multiple receivers from one transmitter
- Programmable digital filter
- Optional external antenna
- Order number: 00632480
- Supplier code: FRRRCR020000B00
- Barcode: 8057090056662
- Model Type: R02
- Channels: 2
- Voltage: 10.5 - 31 Volts DC
- Max transmitters stored: 50
- Frequency: 434.420 MHz
- Maximum current: 15 Amps
- Operating temperature: -15 to +70 °C
-
