€ 626,86
1-2 weeks delivery time
-
+
The Quick Receiver 12-Channel R12+ at 869.8 MHz pairs with compatible Quick transmitters and offers microcontroller-controlled functions with FSK modulation. It supports up to 50 transmitters, has reverse polarity and battery protection, and requires vertical mounting 1 meter above water with optional external antenna.
- Description
- Ask a Question
-

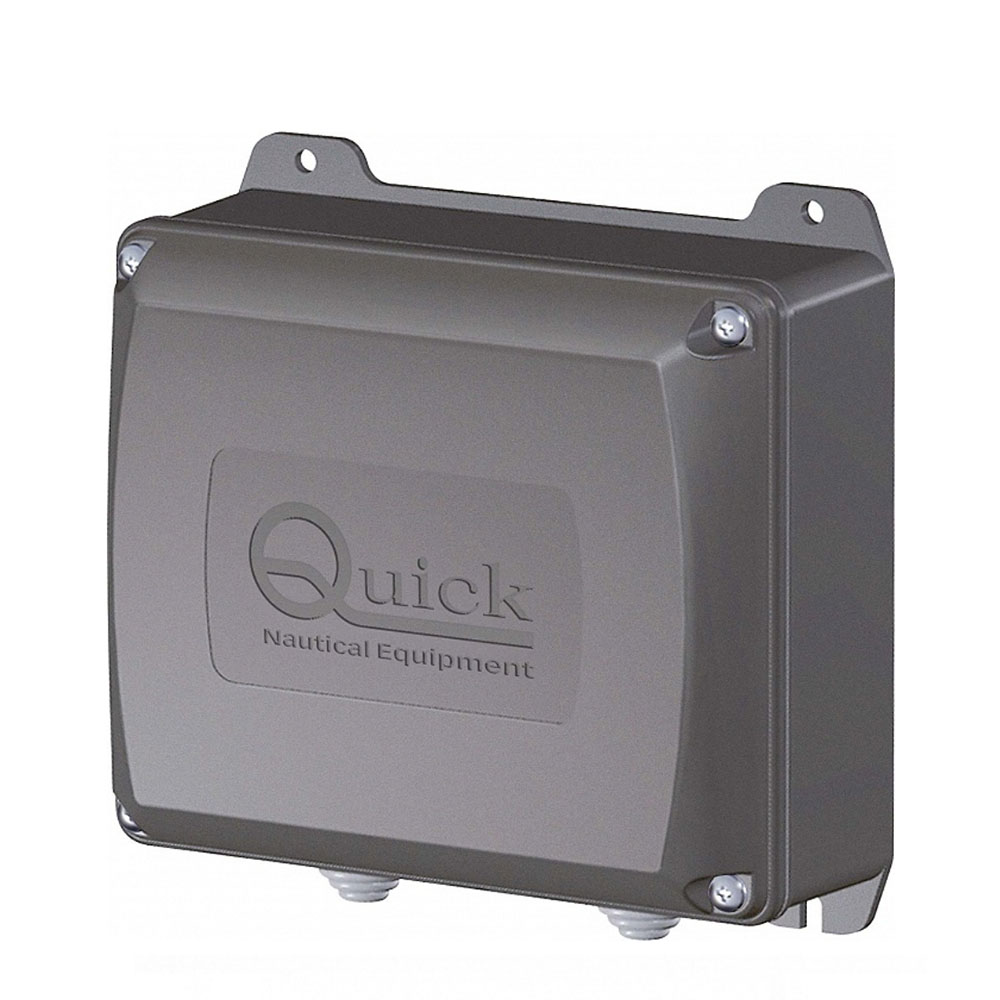

Quick Receiver 12-Channel R12+, 869.8MHz
The Quick Receiver 12-Channel R12+ operates on the 869.8 MHz frequency and pairs with compatible Quick transmitters to control devices and accessories effectively. Designed for dry installation away from motors and electric generators to avoid interference, it can be mounted vertically, at least one meter above water level. When installed inside metal structures, an external antenna is recommended.
- Microcontroller-controlled functions with FSK modulation at 869.8 MHz
- LED and seven-segment display show system status, errors, and problems
- Reverse polarity and empty battery protection
- Stores up to 50 transmitters
- Translation mode allows one transmitter to activate multiple receivers at different locations
- Programmable digital filter
- Connection available for an external 869.8 MHz antenna
- Channels: 12
- Frequency: 869.8 MHz
- Voltage range: 10.5 to 31 Volts DC
- Dimensions (WxHxD): 145 x 123 x 61.4 mm
- Weight: 315 grams
- Operating temperature: -15 to +70 °C
- Maximum power: 15 Amps
- IP rating: IP55
- Order number: 00632806
- Supplier code: FRRRCR12P000A00
- Barcode: 8057090255447
-
