SKU:
TN 00632485
€ 626,03
1-2 weeks delivery time
-
+
The Quick Receiver 12-Channel 10.5-31V/15A at 433 MHz offers microcontroller control, FSK modulation, and protections against reverse polarity and low battery voltage. It supports multiple transmitter activation, has a programmable digital filter, and operates across a voltage range of 10.5 to 31 Volts.
- Description
- Ask a Question
-

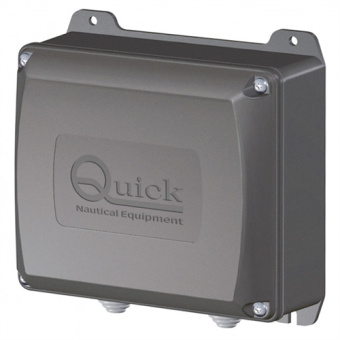

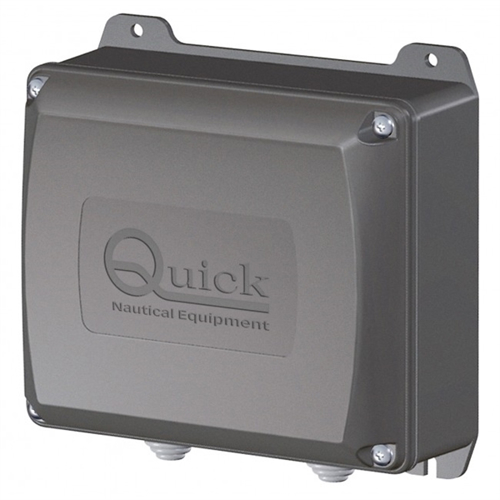

Quick Receiver 12-Channel 10.5-31V/15A - 433MHz
The Quick 12-channel receiver operating at 433 MHz offers robust microcontroller-controlled functions with advanced modulation and protection features, suitable for controlling multiple onboard devices with ease and reliability.
- Microcontroller-controlled functions with FSK modulation
- System operation, error, and problem indications via LED and seven-segment display
- Protection against polarity reversal and low battery voltage
- Supports activation of multiple receivers by one transmitter from different locations
- Programmable digital filter to improve signal quality
- Optional external antenna connection
- Voltage range: 10.5 to 31 Volts
- Channels: 12
- Frequency: 434.420 MHz
- Maximum transmitters stored: 50
- Maximum current: 15 Amps
- Operating temperature: -15 to +70 °C
- Model type: R12
- Order number: 00632485
- Supplier code: FRRRCR120000B00
- Barcode: 8057090056877
-
