€ 582,52
1-2 weeks delivery time
-
+
The Quick Receiver 10-Channel R10+ operates at 869.8 MHz with microcontroller-controlled functions and FSK modulation. It supports up to 50 transmitters, includes reverse polarity and low battery protection, and requires vertical mounting above waterline for reliable control of various devices.
- Description
- Ask a Question
-

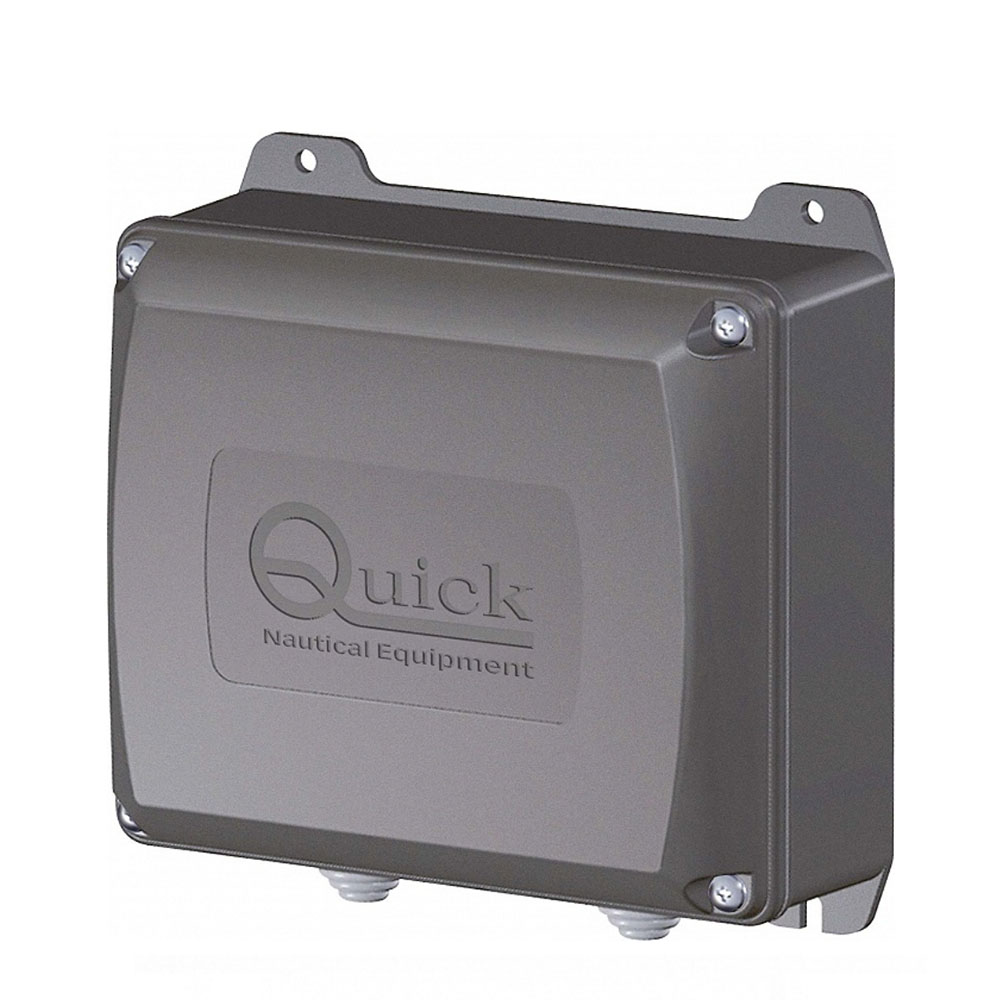

Quick Receiver 10-Channel R10+, 869.8MHz
This 10-channel Quick receiver from the + series operates at 869.8 MHz, enabling seamless control of various devices via a matching Quick transmitter. Designed for reliable performance, it requires careful installation away from sources of electromagnetic interference.
- Microcontroller-controlled functions with FSK modulation at 869.8 MHz
- System status, errors, and issues indicated through LED and seven-segment display
- Reverse polarity protection and low battery safeguard
- Stores up to 50 transmitters for flexible use
- Translation mode activates multiple receivers from one transmitter
- Programmable digital filter enhances signal reliability
- Connection available for optional external 869.8 MHz antenna
- Mounting requires vertical position and placement 1 meter above waterline
- Operating voltage: 10.5 to 31 Volts DC
- Dimensions: 145 x 123 x 61.4 mm
- Weight: 315 grams
- Operating temperature range: -15 to +70 °C
- Maximum current: 15 Amps
- IP class: IP55
- Order number: 00632805
- Supplier code: FRRRCR10P000A00
-
