The Quick Solenoid Valve EL0511 (1/2" BSP Female / 12V) is designed for diesel and petrol fuel systems, offering durable brass and stainless steel construction, a built-in by-pass, and airtight electric connections. It supports a 12V coil and handles fuel flows up to 100 LPH.
- Description
- Ask a Question
-

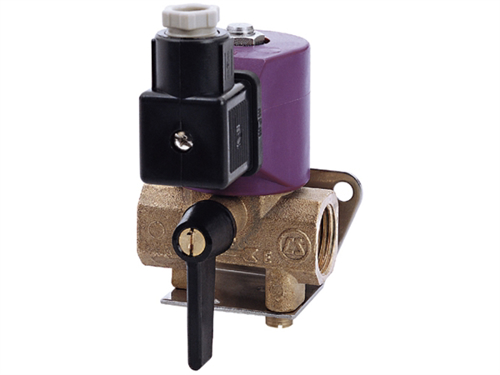

Quick Solenoid Valve EL0511 (1/2" BSP Female / 12V)
The Quick solenoid valve EL0511 is designed for use with diesel and petrol fuels, featuring durable brass and stainless steel construction with a built-in by-pass. It offers continuous service and airtight electric connections, ensuring reliable fuel control.
- Thread size: 1/2" BSP Female
- Voltage: 12 V DC
- Power absorption: 12 W coil
- Fuel flow capacity: 80-100 LPH (liters per hour)

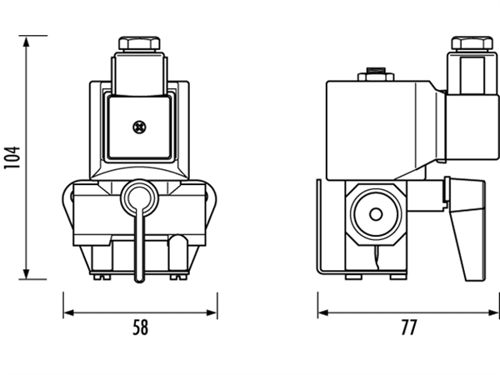

- Dimensions: 116mm x 58mm; height 104mm (4-3/32"), width 58mm (2-9/32"), depth 77mm (3")
- Suitable for petrol and diesel fuels
- Not suitable for LPG gas
- Approvals: UNI EN 28846
- Order number: 00632410
- Supplier code: FEEL05110000A00
- Barcode: 8057090045710
-
