€ 7.184,28
1-2 weeks delivery time
-
+
The Quick Dave Vertical Windlass 3000W/24V/14mm is engineered for vessels from 20 to 24 meters, combining stainless steel and composite materials for strength and lightness. It features an anodized aluminum gearbox, waterproof motor, integrated chain counter, manual free-fall, secure band brake, and spring-loaded pressure arm for smooth chain guidance.
- Description
- Ask a Question
-

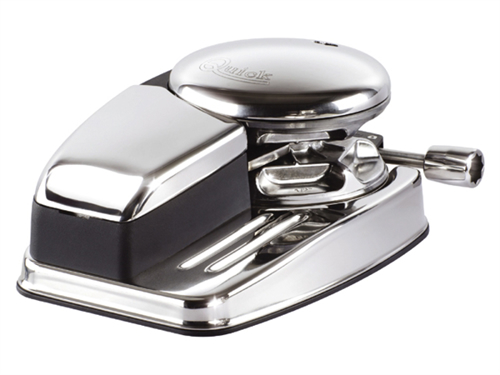

Quick Dave Vertical Windlass 3000W/24V/14mm
Built to power vessels from 20 to 24 meters, this robust windlass blends sturdy stainless steel and composite materials to maximize strength and reduce weight. Its precision engineering ensures reliable operation with advanced features.
- Power: 3000 Watts
- Voltage: 24 Volts
- Chain size: 14 mm
- External base crafted from AISI 316 stainless steel with composite interior
- Chrome bronze chain discs
- Capstans and chain disc cover made of AISI 316 stainless steel
- Gearbox made by Quick from anodized aluminum
- Rope and chain operate on the same disc
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system included
- Secure mechanical band brake
- Spring-loaded pressure arm for chain guidance
- Inspection cover for ease of maintenance
- Order number: 00632686
- Supplier code: FSDV30240Y14A00
- Model: DV5Y2300
-
