€ 6.181,23
1-2 weeks delivery time
-
+
The Quick Dave Vertical Windlass 2300W/24V/12mm is ideal for vessels between 16 to 20 meters, offering strong performance and long-lasting materials including stainless steel and composite. It includes features like a chain and rope sharing one disc, waterproof motor, chain counter sensor, manual free-fall, band brake, pressure arm, and inspection cover for maintenance access.
- Description
- Ask a Question
-

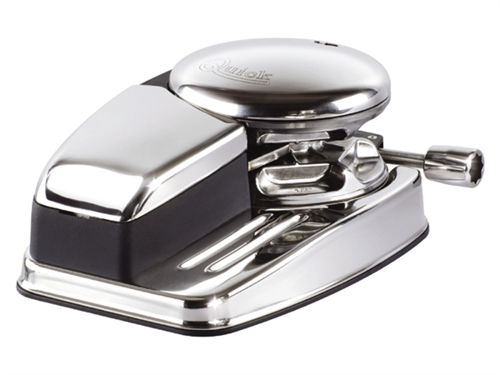

Quick Dave Vertical Windlass 2300W/24V/12mm
This vertical windlass delivers strong and reliable performance for vessels between 16 and 20 meters. Designed with durability in mind, it combines stainless steel and composite materials to offer strength without excess weight.
- Power: 2300 Watts
- Voltage: 24 Volts
- Chain size: 12 mm
- Base: External AISI 316 stainless steel, internal composite construction
- Chain discs made of chrome bronze
- Capstans, chain disc cover, and components made of AISI 316 stainless steel
- Gearbox manufactured in-house from anodized aluminum
- Motors housed in waterproof casing (IP66)
- Rope and chain share the same disc
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system for ease of operation
- Safe mechanical band brake for secure holding
- Spring-loaded pressure arm guides the chain
- Inspection cover for maintenance access
- Order number: 00632684
- Supplier code: FSDV23240Y12A00
- Model: DV5Y2300
-
