SKU:
TN 00632683
€ 5.230,54
1-2 weeks delivery time
-
+
The Quick Dave Vertical Windlass 1700W/24V/12mm with Drum is a powerful, lightweight anchoring solution designed for vessels between 12 to 16 meters. It features a durable construction with an AISI 316 stainless steel exterior and a composite interior, chrome bronze chain discs, and an anodized aluminum gearbox. Key features include a waterproof motor, integrated chain counter sensor, manual free-fall, secure band brake, and a spring-loaded pressure arm.
- Description
- Ask a Question
-

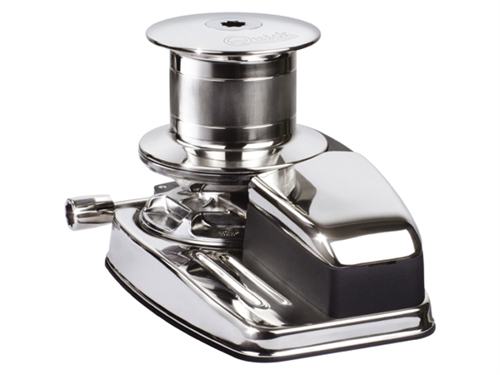

Quick Dave Vertical Windlass 1700W/24V/12mm With Drum
This version of the Quick Dave Vertical Windlass operates at 24 volts and includes a drum, combining power and durability in a lightweight design. The base uses AISI 316 stainless steel externally and composite internally. Chrome bronze chain discs and AISI 316 capstans and covers enhance its longevity. It has a waterproof motor and an anodized aluminum gearbox made by Quick.
- Combined rope and chain on one disc
- Integrated sensor and magnet for chain counting
- Manual Free-Fall capability
- Secure mechanical band brake
- Spring-loaded pressure arm to guide chain
- Inspection cover provided
- IP67 waterproof motor
- Power output: 1700 Watt
- Voltage: 24 Volts
- Chain diameter: 12 mm
- Includes capstan
- Fits ships 12 to 16 meters long
- Model number: DV5Y1700D
- Order number: 00632683
- Supplier code: FSDV1724DY12A00
-
