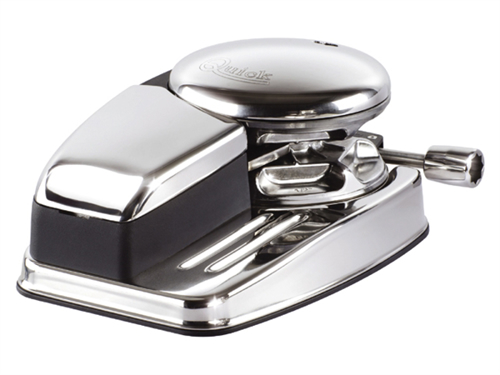

Quick Dave Vertical Windlass 1700W/24V/12mm
This Quick Dave Vertical Windlass model delivers the same reliable power at 24 volts, designed with a stainless steel and composite structure for strength without excessive weight. It features chrome bronze chain discs and AISI 316 components, with a durable anodized aluminum gearbox. The motor casing is waterproof, offering protection in marine environments.
- Rope and chain on the same disc
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Mechanical band brake for safe operation
- Spring-loaded pressure arm for chain guidance
- Inspection cover included
- Waterproof motor rated IP67
- Power: 1700 Watt
- Voltage: 24 Volts
- Chain size: 12 mm
- No capstan
- Designed for ships 12 to 16 meters in length
- Model: DV5Y1700
- Order number: 00632682
- Supplier code: FSDV17240Y12A00
-
