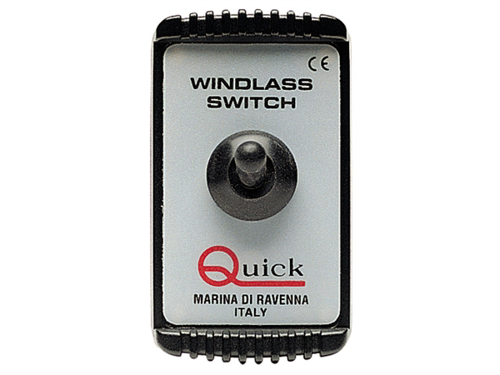

Quick 10100 - Hydraulic Magnetic Circuit Breaker (100A / DC)
The Quick 10100 is a 100 amp hydraulic magnetic circuit breaker designed for direct current applications up to 80V DC. It provides reliable protection by tripping during over-current conditions such as shorts or prolonged overloads. The breaker features a slow burn trip mechanism and can be manually reset, ensuring your equipment remains safe and operational.
- Trip Current: 100A
- Voltage: Maximum 80V DC
- Approvals: CE certified
- Operating Temperature Range: -40°C to +85°C

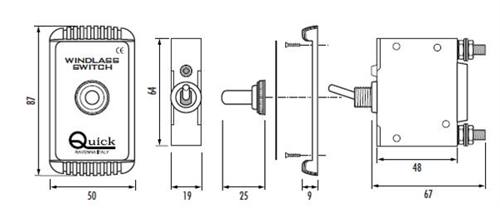

- Dimensions:
- Height: 87mm (3-7/16")
- Width: 50mm (1-31/32")
- Depth Overall: 95mm (3-3/4")
- Above Surface Depth: 28mm (1-3/32")
- Behind Panel Depth: 67mm (2-5/8")
- General Information:
- Order Number: 00632149
- Supplier Code: FD1010000000A00
- Barcode: 8057090044751
- Fuse Specifications:
- Value: 100 A
- Product Length: 87 mm
- Product Width: 50 mm
- Product Height: 9 mm
-
