SKU:
ALP 72612
€ 13.594,12
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical, Model 'Project X5', 14mm, 24v, 3000w, with Drum, offers similar performance to the 12mm version but with a larger 14mm line size. This windlass is built for boats in the 85-95' range and delivers dependable lifting power, with a max linear load of 2800kg and a line speed of 12m/min. The control box and drum are included for efficient anchoring.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X5', 14mm, 24v, 3000w, With Drum
This version of the 'Project X5' is designed for boats, offering a 14mm size for superior line handling. It retains the same 3000W motor, 24V power supply, and high lifting capacity as the 12mm version, providing reliable performance for boats in the 85-95' (25-29m) range. The included drum and control box ensure easy operation and efficient anchoring.
- Article number: 72612
- EAN number: 8719182122388
- For boats: 85-95' (25-29m)
- Motor: 3000W
- Power supply: 24V
- Max. Linear Load: 2800kg
- Max. Lift Load: 1400kg
- Lift Working Load: 760kg
- Amps Work Load: 250A
- Line Speed: 12m/min
- Max. Line Speed: 30m/min
- Weight: 100kg
- Control box: Included
- Size: 14mm
- Conformity: ISO 4565
- Drum: Yes, with

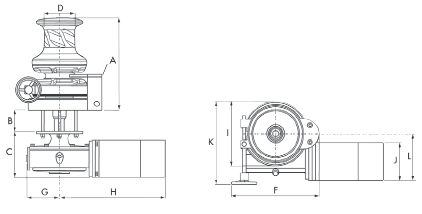

- Dimensions:
- Dimension A: 385mm
- Dimension B: 60-90mm
- Dimension C: 200mm
- Dimension D: Ø132mm
- Dimension E: 332mm
- Dimension F: 140mm
- Dimension G: 445mm
- Dimension I: 264mm
- Dimension J: Ø152mm
- Dimension K: 339mm
- Dimension L: 190mm
-
