SKU:
ALP 72622
€ 10.233,78
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X5' 14mm is a more powerful version for boats 85-95' (25-29m), equipped with a hydraulic motor and a drum. This model delivers a maximum linear load of 2500kg and a lift load of 1250kg, with a line speed of 16m/min, ensuring reliability and efficiency in heavy-duty marine applications.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X5', 14mm, 24v, 3000w, Hydraulic, With Drum
The Lofrans Windlass Vertical 'Project X5' 14mm version combines a powerful hydraulic motor with a durable drum, designed for larger boats ranging from 85-95' (25-29m). This model delivers consistent high performance under demanding conditions.
- Article number: 72622
- EAN number: 8719182122388
- For Boats: 85-95' (25-29m)
- Motor: Hydraulic
- Max. Linear Load: 2500kg
- Max. Lift Load: 1250kg
- Lift Working Load: 680kg
- Line Speed: 16m/min
- Max. Line Speed: 16m/min
- Weight: 55kg
- Control Box: Included
- Conform: ISO 4565
- Drum: Yes, with

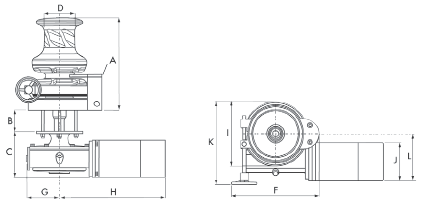

- Dimensions:
- A: 385mm
- B: 60-90mm
- C: 200mm
- D: Ø132mm
- E: 332mm
- F: 140mm
- G: 445mm
- I: 264mm
- J: Ø152mm
- K: 339mm
- L: 190mm
-
