SKU:
ALP 72611
€ 13.594,12
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical, Model 'Project X5', 12mm, 24v, 3000w, with Drum, is designed for larger boats in the 85-95' range. It features a 3000W motor, 24V power supply, and a max lifting capacity of 1400kg, making it ideal for demanding marine tasks. The included control box and drum ensure smooth anchoring operations, with a line speed of 12m/min and a max speed of 30m/min.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X5', 12mm, 24v, 3000w, With Drum
For larger boats ranging from 85-95 feet (25-29 meters), the Lofrans 'Project X5' provides the power needed for more demanding marine applications. Its 3000W motor and robust 24V power supply deliver reliable lifting capacity. The control box and drum are included for enhanced efficiency, and its heavy-duty design ensures consistent performance.
- Article number: 72611
- EAN number: 8719182122388
- For boats: 85-95' (25-29m)
- Motor: 3000W
- Power supply: 24V
- Max. Linear Load: 2800kg
- Max. Lift Load: 1400kg
- Lift Working Load: 760kg
- Amps Work Load: 250A
- Line Speed: 12m/min
- Max. Line Speed: 30m/min
- Weight: 100kg
- Control box: Included
- Size: 12mm
- Conformity: ISO 4565
- Drum: Yes, with

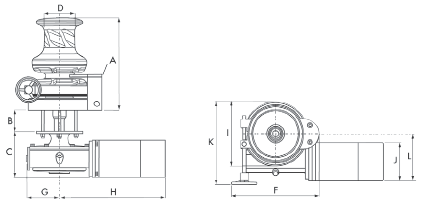

- Dimensions:
- Dimension A: 385mm
- Dimension B: 60-90mm
- Dimension C: 200mm
- Dimension D: Ø132mm
- Dimension E: 332mm
- Dimension F: 140mm
- Dimension G: 445mm
- Dimension I: 264mm
- Dimension J: Ø152mm
- Dimension K: 339mm
- Dimension L: 190mm
-
