SKU:
ALP 72511
€ 6.838,90
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical, Model 'Project X4', 12mm (Cw), 24v, 2300w, With Drum is designed for boats ranging from 60-80' and features a 2300W motor, ideal for anchoring systems. It has a maximum linear load of 2000kg and a lift working load of 545kg, with a line speed of up to 27m/min. The windlass includes a control box and a drum, and it meets ISO 4565 standards, making it reliable for demanding marine conditions.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X4', 12mm (Cw), 24v, 2300w, With Drum
This windlass is designed for boats ranging from 60-80' (18-24m) and comes with a 2300W motor. It offers excellent performance for anchoring systems and is built to withstand demanding marine conditions.
- Article Number: 72511
- EAN Number: 8719182122029
- For Boats: 60-80' (18-24m)
- Motor Power: 2300W
- Power Supply: 24V
- Max. Linear Load: 2000kg
- Max. Lift Load: 1000kg
- Lift Working Load: 545kg
- Amps Work Load: 190A
- Line Speed: 12m/min
- Max. Line Speed: 27m/min
- Control Box: Included
- Size: 12mm
- Conform: ISO 4565
- Drum: With
- Weight with Drum: 82kg

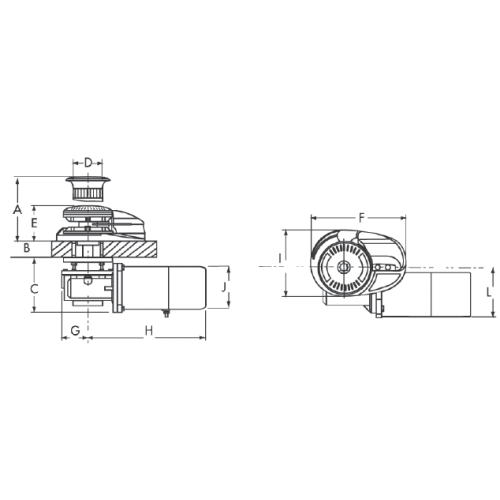

- Dimensions:
- A: 285mm
- B: 60-130mm
- C: 200mm
- D: Ø125mm
- E: 150mm
- F: 380mm
- G: 140mm
- H: 445mm
- I: 220mm
- J: Ø127mm
- K: 240mm
- L: 190mm
-
