SKU:
ALP 72521
€ 7.420,35
1-2 weeks delivery time
-
+
This Lofrans Windlass Vertical 'Project X4' also features a 2700W motor, offering strong performance for boats in the 60 to 80 feet range. The 24V system ensures it can manage a maximum linear load of 2400kg and a lift load of 1200kg, with line speeds reaching 29m/min. The included drum provides added convenience for anchoring, making it an ideal choice for demanding marine applications.
- Description
- Ask a Question
-

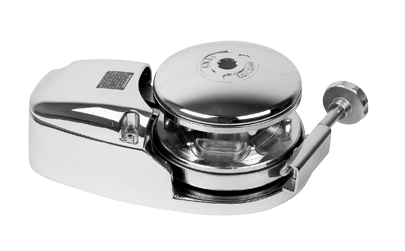

Lofrans Windlass Vertical, Model 'Project X4', 12mm (Ccw), 24v, 2700w, With Drum
This Lofrans Windlass Vertical Model 'Project X4' is a robust vertical windlass with a powerful 2700W motor, designed specifically for boats ranging from 60 to 80 feet (18-24 meters). Operating on a 24V power supply, it offers high performance with a maximum linear load of 2400kg and a maximum lift load of 1200kg. This version includes a drum, providing added convenience for anchoring needs.
- Article number: 72532
- EAN number: 8719182122029
- Suitable for boats: 60-80' (18-24m)
- Motor Power: 2700W
- Power Supply: 24V
- Max. Linear Load: 2400kg
- Max. Lift Load: 1200kg
- Lift Working Load: 650kg
- Amps Work Load: 200A
- Line Speed: 15m/min
- Max. Line Speed: 29m/min
- Control Box: Included
- Line Size: 12mm
- Drum: With
- Weight with Drum: 85kg

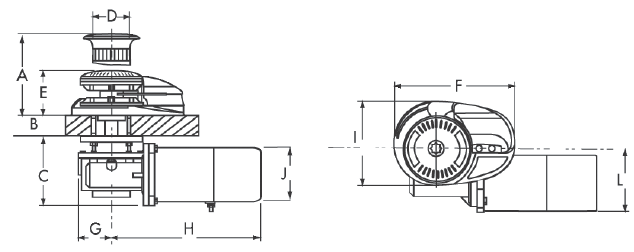

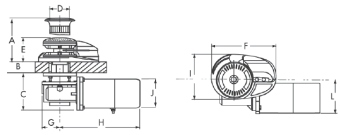

- Dimensions:
- Dimension A: 285mm
- Dimension B: 60-130mm
- Dimension C: 200mm
- Dimension D: Ø125mm
- Dimension E: 150mm
- Dimension F: 380mm
- Dimension G: 140mm
- Dimension H: 445mm
- Dimension I: 220mm
- Dimension J: Ø127mm
- Dimension K: 240mm
- Dimension L: 190mm
-
