SKU:
ALP 72501
€ 6.534,35
1-2 weeks delivery time
-
+
The Lofrans Project X4 Windlass Vertical is engineered for larger boats between 60-80 feet, offering powerful 2300W motor performance. Its vertical design ensures smooth anchoring with a line speed of 27m/min and a max lifting capacity of 1000kg.
- Description
- Ask a Question
-

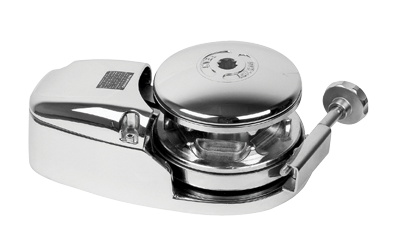

Lofrans Windlass Vertical, Model 'Project X4', 12mm (Ccw), 24v, 2300w, Without Drum
The Lofrans Windlass Vertical, Model 'Project X4' is engineered for larger boats between 60-80' (18-24m). This powerful 2300W windlass operates on a 24V system and is equipped with impressive lifting capabilities. It provides exceptional line speed for smooth anchoring and mooring.
- Article Number: 72501
- EAN Number: 8719182122029
- For Boats: 60-80' (18-24m)
- Motor Power: 2300W
- Power Supply: 24V
- Max. Linear Load: 2000kg
- Max. Lift Load: 1000kg
- Lift Working Load: 545kg
- Amps Work Load: 190A
- Line Speed: 12m/min
- Max. Line Speed: 27m/min
- Control Box: Included
- Size: 12mm
- Conform: ISO 4565
- Drum: Without
- Weight with Drum: 82kg

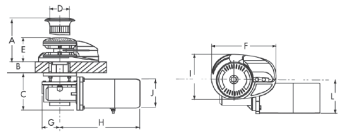

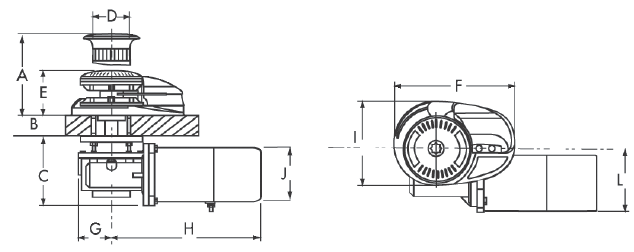

- Dimension A: 285mm
- Dimension B: 60-130mm
- Dimension C: 200mm
- Dimension D: Ø125mm
- Dimension E: 150mm
- Dimension F: 380mm
- Dimension G: 140mm
- Dimension H: 445mm
- Dimension I: 220mm
- Dimension J: Ø127mm
- Dimension K: 240mm
- Dimension L: 190mm
-
