SKU:
ALP 72512
€ 6.838,90
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X4' with a 2300W motor is perfect for larger boats between 60 and 80 feet. Operating on a 24V power supply, it provides impressive power and durability, capable of handling up to 2000kg of linear load and a line speed of 27m/min. The inclusion of a drum makes it a comprehensive choice for more demanding marine environments, offering reliability and strength for larger vessels.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X4', 12mm (Ccw), 24v, 2300w, With Drum
The Lofrans Windlass Vertical 'Project X4' is a powerful windlass designed for larger boats in the 60-80' (18-24m) range. With a 2300W motor and a 24V power supply, it’s ideal for demanding marine applications where durability and power are paramount.
- Article number: 72512
- EAN number: 8719182122029
- Boat size: For boats 60-80' (18-24m)
- Motor: 2300W
- Power Supply: 24V
- Max. Linear Load: 2000kg
- Max. Lift Load: 1000kg
- Lift Working Load: 545kg
- Amps Work Load: 190A
- Line Speed: 12m/min
- Max. Line Speed: 27m/min
- Control Box: Included
- Size: 12mm
- Conform: ISO 4565
- Drum: With
- Weight with Drum: 82kg

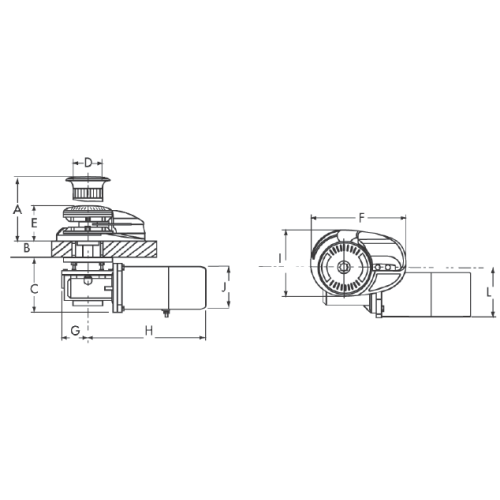

- Dimensions:
- Dimension A: 285mm
- Dimension B: 60-130mm
- Dimension C: 200mm
- Dimension D: Ø125mm
- Dimension E: 150mm
- Dimension F: 380mm
- Dimension G: 140mm
- Dimension H: 445mm
- Dimension I: 220mm
- Dimension J: Ø127mm
- Dimension K: 240mm
- Dimension L: 190mm
-
