SKU:
ALP 72431
€ 3.188,31
1-2 weeks delivery time
-
+
This Lofrans windlass with a 1700W motor and 24V power supply is designed for boats in the 50-60' range. It features a drum for anchoring and a maximum line speed of 32m/min. It includes a control box and is built to handle heavy lifting, offering a reliable and efficient windlass solution for demanding nautical environments.
- Description
- Ask a Question
-

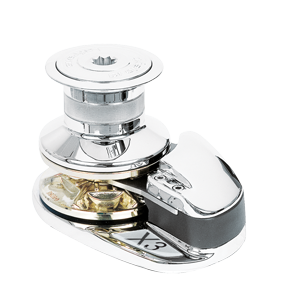

Lofrans Windlass Vertical, Model 'Project X3', 8mm, 24v, 1700w, With Drum
This windlass is designed for boats in the range of 50-60 feet (15-18 meters). With a 1700W motor and a 24V power supply, it’s built to handle heavy lifting and is ideal for a variety of marine applications. The included control box ensures easy operation, while the drum offers improved functionality for anchoring systems.
- Article number: 72431
- EAN number: 8719182121244
- For boats: 50-60' (15-18m)
- Motor: 1700W
- Power supply: 24V
- Max. Linear Load: 1695kg
- Max. Lift Load: 850kg
- Lift Working Load: 215kg
- Amps Work Load: 68A
- Line Speed: 15m/min
- Max. Line Speed: 32m/min
- Control box: Included
- Size: 8mm
- Conformity: ISO 4565 / DIN 766
- Drum: With
- Weight with drum: 38kg

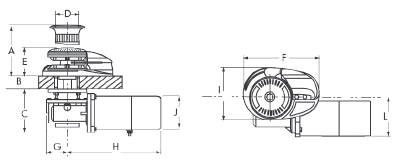

- Dimensions:
- Dimension A: 195mm
- Dimension B: 50-70mm
- Dimension C: 165mm
- Dimension D: Ø92mm
- Dimension E: 110mm
- Dimension F: 270mm
- Dimension G: 80mm
- Dimension H: 300mm
- Dimension I: 192mm
- Dimension J: Ø126mm
- Dimension L: 135mm
-
