SKU:
ALP 72423
€ 2.993,34
1-2 weeks delivery time
-
+
This vertical Lofrans Project X3 windlass is perfect for boats in the 50-60' range, offering exceptional performance without a drum. Powered by a 1700W motor and a 24V power supply, it can handle up to 1695kg of linear load and features a line speed of 32m/min. The windlass includes a control box and meets ISO 4565 standards, ideal for heavier-duty applications.
- Description
- Ask a Question
-

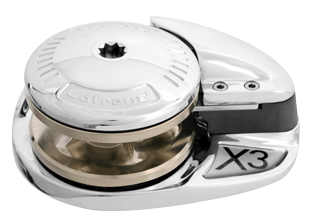

Lofrans Windlass Vertical, Model 'Project X3', 12mm Iso/13mm Din 766, 24v, 1700w, Without Drum
This vertical windlass is designed for boats in the 50-60' (15-18m) range, offering exceptional performance and reliability. It operates with a 24V power supply and has a powerful 1700W motor. Perfect for boating enthusiasts seeking a robust windlass system without the drum.
- Article number: 72423
- EAN number: 8719182121244
- For: Boats 50-60' (15-18m)
- Motor: 1700W
- Power Supply: 24V
- Max. Linear Load: 1695kg
- Max. Lift Load: 850kg
- Lift Working Load: 215kg
- Amps Work Load: 68A
- Line Speed: 15m/min
- Max. Line Speed: 32m/min
- Control box: Included
- Size: 12mm
- Conform: ISO 4565
- Drum: Without
- Weight with drum: 38kg

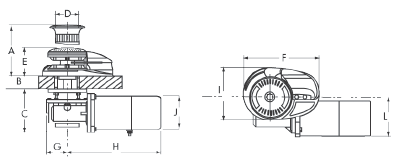

- Dimensions:
- A: 195mm
- B: 50-70mm
- C: 165mm
- D: Ø92mm
- E: 110mm
- F: 270mm
- G: 80mm
- H: 300mm
- I: 192mm
- J: Ø126mm
- L: 135mm
-
