SKU:
ALP 72433
€ 3.188,31
1-2 weeks delivery time
-
+
The Lofrans Project X3 vertical windlass, built for boats in the 50-60' range, offers a 1700W motor with a 24V power supply. It includes a drum and features a maximum line speed of 32m/min and a control box for easy operation. This model provides reliable lifting power and meets ISO 4565 standards, making it ideal for demanding anchoring tasks.
- Description
- Ask a Question
-

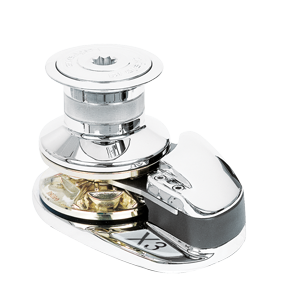

Lofrans Windlass Vertical, Model 'Project X3', 12mm, 24v, 1700w, With Drum
The Lofrans Windlass Model 'Project X3' is designed for boats between 50 and 60 feet (15-18 meters) and provides exceptional power and reliability. With a 1700W motor and a 24V power supply, this windlass is designed to handle heavy-duty lifting and anchoring operations with ease.
- Article number: 72433
- EAN number: 8719182121244
- Boat Size: For boats 50-60' (15-18m)
- Motor Power: 1700W
- Power Supply: 24V
- Max. Linear Load: 1695kg
- Max. Lift Load: 850kg
- Lift Working Load: 215kg
- Amps Work Load: 68A
- Line Speed: 15m/min
- Max. Line Speed: 32m/min
- Control Box: Included
- Size: 12mm
- Conformance: ISO 4565
- Drum: With
- Weight with Drum: 38kg

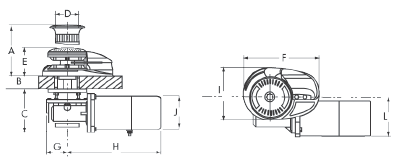

- Dimensions:
- A: 195mm
- B: 50-70mm
- C: 165mm
- D: Ø92mm
- E: 110mm
- F: 270mm
- G: 80mm
- H: 300mm
- I: 192mm
- J: Ø126mm
- L: 135mm
-
