SKU:
ALP 72422
€ 2.906,15
1-2 weeks delivery time
-
+
This version of the Lofrans Project X3 is a cost-effective option for boats of the same size range but without a drum. It retains all features like the 1700W motor, 24V power supply, and the same lifting capacities, making it suitable for users who don’t require a drum. It includes a control box and offers a reliable windlass solution.
- Description
- Ask a Question
-

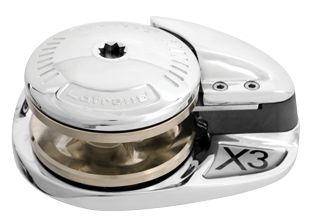

Lofrans Windlass Vertical, Model 'Project X3', 10mm, 24v, 1700w, Without Drum
This model of the Lofrans Project X3 comes without a drum but retains all other features, offering a cost-effective option for those who don’t need the drum included.
- Article Number: 72422
- EAN Number: 8719182121244
- Motor Power: 1700W
- Power Supply: 24V
- Max. Linear Load: 1695kg
- Max. Lift Load: 850kg
- Lift Working Load: 215kg
- Amps Work Load: 68A
- Line Speed: 15m/min
- Max. Line Speed: 32m/min
- Control Box: Included
- Size: 10mm
- Conform: DIN 766
- Drum: Without
- Weight with Drum: 38kg

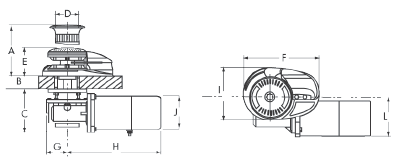

- Dimensions:
- A: 195mm
- B: 50-70mm
- C: 165mm
- D: Ø92mm
- E: 110mm
- F: 270mm
- G: 80mm
- H: 300mm
- I: 192mm
- J: Ø126mm
- L: 135mm
-
