SKU:
ALP 72432
€ 3.188,31
1-2 weeks delivery time
-
+
This Lofrans Project X3 windlass, designed for boats in the same size range, operates on a 24V power supply and offers a 1700W motor. It provides a maximum linear load of 1695kg, and a lift load of 850kg, with a line speed of up to 32m/min. The model includes a drum and comes with a control box, offering high efficiency and lifting power, ideal for various maritime tasks.
- Description
- Ask a Question
-

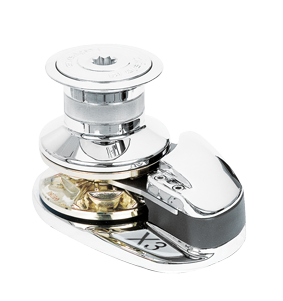

Lofrans Windlass Vertical, Model 'Project X3', 10mm, 24v, 1700w, With Drum
This version of the Project X3 windlass is designed for boats of the same size range but operates on a 24V power supply, offering slightly higher lifting capacity and efficiency.
- Article Number: 72432
- EAN Number: 8719182121244
- Motor Power: 1700W
- Power Supply: 24V
- Max. Linear Load: 1695kg
- Max. Lift Load: 850kg
- Lift Working Load: 215kg
- Amps Work Load: 68A
- Line Speed: 15m/min
- Max. Line Speed: 32m/min
- Control Box: Included
- Size: 10mm
- Conform: DIN 766
- Drum: With
- Weight with Drum: 38kg

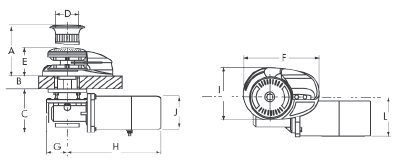

- Dimensions:
- A: 195mm
- B: 50-70mm
- C: 165mm
- D: Ø92mm
- E: 110mm
- F: 270mm
- G: 80mm
- H: 300mm
- I: 192mm
- J: Ø126mm
- L: 135mm
-
