SKU:
ALP 72342
€ 1.716,63
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical, Model 'Project X2', 8mm, 24v, 1000w, without Drum offers the same powerful 1000W motor and 24V power supply as the version with a drum, but without the drum for a more streamlined setup. With a max. linear load of 1060kg and a lift load of 530kg, it is suitable for larger boats, delivering a line speed of up to 45m/min.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X2', 8mm, 24v, 1000w, Without Drum
This model offers the same powerful 1000W motor and 24V power supply as the previous windlass but comes without the drum. It's built for boats ranging from 25-45 feet and offers an impressive max. line speed of 45m/min. A reliable choice for boaters needing high performance without the drum.
- Article Number: 72342
- EAN Number: 8719182120346
- For Boats: 25-45' (7.5-13m)
- Motor Power: 1000W
- Power Supply: 24V
- Max. Linear Load: 1060kg
- Max. Lift Load: 530kg
- Lift Working Load: 160kg
- Amps Work Load: 59A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control Box: Included
- Size: 8mm
- Conform: ISO 4565 / DIN 766
- Drum: Without
- Weight (With Drum): 24kg

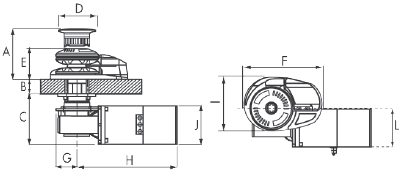

- Dimensions:
- A: 153mm
- B: 25-40mm
- C: 150mm
- D: Ø76mm
- E: 94mm
- F: 232mm
- G: 62mm
- H: 250mm
- I: 162mm
- J: Ø114mm
- L: 138mm
-
