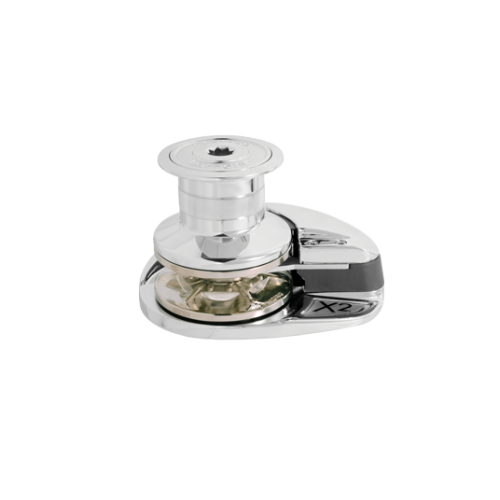

Lofrans Windlass Vertical, Model 'Project X2', 8mm, 24v, 1000w, With Drum

SKU: ALP 72352

€ 1.791,72

1-2 weeks delivery time

- +

Add to cart

The Lofrans Windlass Vertical, Model 'Project X2', 8mm, 24v, 1000w, with Drum is perfect for larger boats (25-45') requiring more power. With a 1000W motor and 24V power supply, it handles a max. linear load of 1060kg and a lift load of 530kg. The included drum helps achieve up to 45m/min in line speed, making it ideal for intensive marine operations.

Description
Ask a Question

Lofrans Windlass Vertical, Model 'Project X2', 8mm, 24v, 1000w, With Drum

Engineered for larger boats (25-45'), this 24V windlass features a 1000W motor and offers a significant boost in power. It can handle a linear load of up to 1060kg and provides a line speed of 45m/min. With the included drum, it's a perfect fit for intensive marine operations.
- Article Number: 72352
- EAN Number: 8719182120346
- For Boats: 25-45' (7.5-13m)
- Motor Power: 1000W
- Power Supply: 24V
- Max. Linear Load: 1060kg
- Max. Lift Load: 530kg
- Lift Working Load: 160kg
- Amps Work Load: 59A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control Box: Included
- Size: 8mm
- Conform: ISO 4565 / DIN 766
- Drum: With
- Weight (With Drum): 24kg

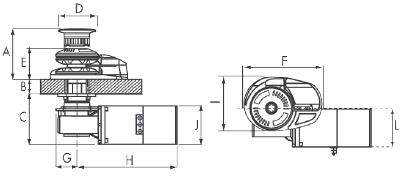

- Dimensions:
  - A: 153mm
  - B: 25-40mm
  - C: 150mm
  - D: Ø76mm
  - E: 94mm
  - F: 232mm
  - G: 62mm
  - H: 250mm
  - I: 162mm
  - J: Ø114mm
  - L: 138mm
