SKU:
ALP 72302
€ 1.453,62
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 800w, without Drum offers the same performance as the version with a drum but without the drum for a lighter and more flexible setup. It provides a reliable 800W motor with a 12V power supply, offering a max. linear load of 850kg and a lift load of 460kg, making it an efficient and space-saving solution for boats ranging from 25-45 feet.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 800w, Without Drum
This windlass is designed for boats ranging from 25 to 45 feet (7.5-13m). It provides reliable lifting power with a 12V motor and a maximum linear load capacity of 850kg. With a line speed of up to 35m/min, it is perfect for efficient anchoring and docking.
- Article Number: 72302
- EAN Number: 8719182120346
- For Boats: 25-45' (7.5-13m)
- Motor Power: 800W
- Power Supply: 12V
- Max. Linear Load: 850kg
- Max. Lift Load: 460kg
- Lift Working Load: 115kg
- Amps Work Load: 110A
- Line Speed: 30m/min
- Max. Line Speed: 35m/min
- Control Box: Included
- Size: 8mm
- Conform: ISO 4565 / DIN 766
- Drum: Without
- Weight (With Drum): 23kg

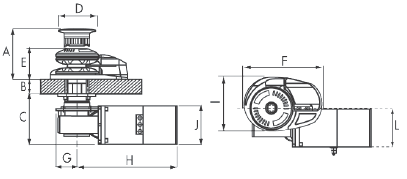

- Dimensions:
- A: 153mm
- B: 25-40mm
- C: 150mm
- D: Ø76mm
- E: 94mm
- F: 232mm
- G: 62mm
- H: 244mm
- I: 162mm
- J: Ø94mm
- L: 120mm
-
