SKU:
ALP 72322
€ 1.716,63
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 1000w, without Drum delivers the same powerful 1000W motor and 12V power supply but without the drum, offering a more lightweight and flexible setup for boats ranging from 25-45 feet. It provides a max. linear load of 1000kg and a lift load of 500kg, with a line speed of up to 45m/min for fast and reliable anchoring performance.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 1000w, Without Drum
This vertical windlass offers the same power and reliability as the version with a drum, but comes without the drum for a lighter setup. Perfect for boats in the 25-45' range, it ensures smooth operation with a 1000W motor and 12V power supply.
- Article Number: 72322
- EAN Number: 8719182120346
- For Boats: 25-45' (7.5-13m)
- Motor: 1000W
- Power Supply: 12V
- Max. Linear Load: 1000kg
- Max. Lift Load: 500kg
- Lift Working Load: 150kg
- Amps Work Load: 117A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control Box: Included
- Size: 8mm
- Conformance: ISO 4565 / DIN 766
- Drum: Without
- Weight with Drum: 24kg

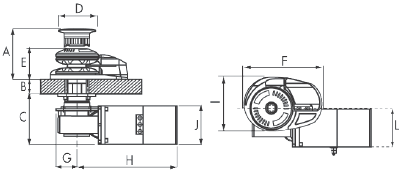

- Dimensions:
- A: 153mm
- B: 25-40mm
- C: 150mm
- D: Ø76mm
- E: 94mm
- F: 232mm
- G: 62mm
- H: 250mm
- I: 162mm
- J: Ø114mm
- L: 138mm
-
