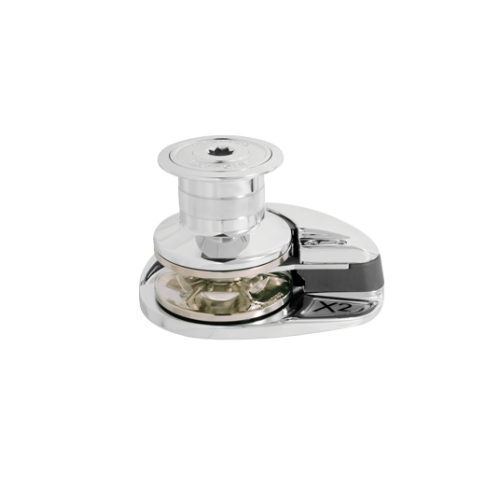

Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 1000w, With Drum

SKU: ALP 72332

€ 1.791,72

1-2 weeks delivery time

- +

Add to cart

The Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 1000w, with Drum is designed for boats between 25-45 feet, providing a powerful 1000W motor with a 12V power supply. This windlass handles up to 1000kg linear load and 500kg lift load, making it ideal for more demanding tasks. The included drum ensures smooth operation with a max. line speed of 45m/min, offering great efficiency for larger vessels.

Description
Ask a Question

Lofrans Windlass Vertical, Model 'Project X2', 8mm, 12v, 1000w, With Drum

This Lofrans Windlass is a powerful and durable vertical windlass designed for boats ranging from 25 to 45 feet. It features a 1000W motor and operates on a 12V power supply. Ideal for heavy-duty use, it includes a drum and is built for maximum efficiency in lifting loads.
- Article Number: 72332
- EAN Number: 8719182120346
- For Boats: 25-45' (7.5-13m)
- Motor: 1000W
- Power Supply: 12V
- Max. Linear Load: 1000kg
- Max. Lift Load: 500kg
- Lift Working Load: 150kg
- Amps Work Load: 117A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control Box: Included
- Size: 8mm
- Conformance: ISO 4565 / DIN 766
- Drum: With
- Weight with Drum: 24kg

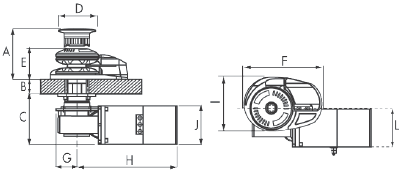

- Dimensions:
  - A: 153mm
  - B: 25-40mm
  - C: 150mm
  - D: Ø76mm
  - E: 94mm
  - F: 232mm
  - G: 62mm
  - H: 250mm
  - I: 162mm
  - J: Ø114mm
  - L: 138mm
