Lofrans Windlass Vertical, Model 'Project X2', 6mm, 12v, 800w, Without Drum

SKU: ALP 72301

€ 1.453,62

1-2 weeks delivery time

- +

Add to cart

The Lofrans Windlass Vertical, Model 'Project X2', 6mm, 12v, 800w, without Drum offers the same high-quality performance as the version with a drum but without the drum for a lighter and more flexible setup. It's perfect for boats ranging from 25-45 feet and provides a reliable 800W motor, with a max. linear load of 850kg and a lift load of 460kg. This model ensures a line speed of up to 35m/min for efficient operation.

Description
Ask a Question

Lofrans Windlass Vertical, Model 'Project X2', 6mm, 12v, 800w, Without Drum

This version of the Lofrans Windlass Vertical offers the same high-quality performance as the previous model but without the drum. It features an 800W motor and a 12V power supply, making it perfect for boats from 25-45' (7.5-13m).
- Article number: 72301
- EAN number: 8719182120346
- For boats: 25-45' (7.5-13m)
- Motor: 800W
- Power Supply: 12V
- Max. Linear Load: 850kg
- Max. Lift Load: 460kg
- Lift Working Load: 115kg
- Amps Work Load: 110A
- Line Speed: 30m/min
- Max. Line Speed: 35m/min
- Control box: Included
- Size: 6mm
- Conform: ISO 4565 / DIN 766
- Drum: Without
- Weight with drum: 23kg

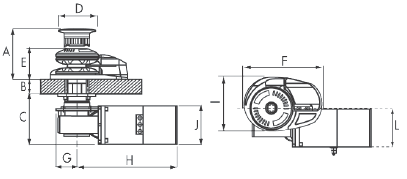

- Dimensions:
  - A: 153mm
  - B: 25-40mm
  - C: 150mm
  - D: Ø76mm
  - E: 94mm
  - F: 232mm
  - G: 62mm
  - H: 244mm
  - I: 162mm
  - J: Ø94mm
  - L: 120mm
