Lofrans Windlass Vertical, Model 'Project X2', 6mm, 12v, 1000w, With Drum

SKU: ALP 72331

€ 1.791,72

1-2 weeks delivery time

- +

Add to cart

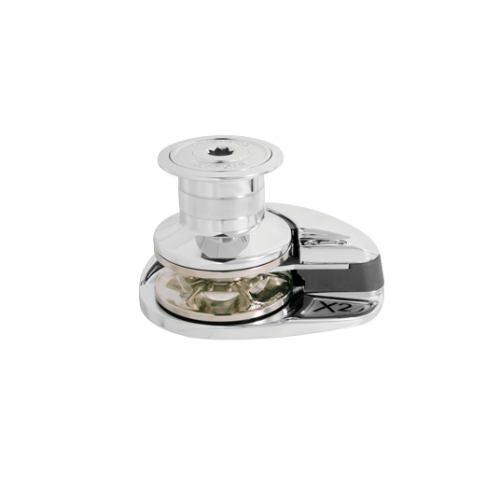

The Lofrans Windlass Vertical 'Project X2' (12V, with 6mm line) is designed for boats between 25-45 feet (7.5-13 meters). This model features a 1000W motor with a 12V power supply and includes a drum to handle anchoring efficiently. The line speed reaches 25m/min, with a max of 45m/min. It has a 6mm line size, and the system includes a control box. The max linear load is 1000kg, and the lift load is 500kg.

Description
Ask a Question

Lofrans Windlass Vertical, Model 'Project X2', 6mm, 12V, 1000W, With Drum

This windlass is also for boats in the 25-45' (7.5-13m) range, equipped with a 1000W motor and powered by 12V. The drum is included, and this model is designed to handle smaller lines with a 6mm size while still providing strong performance.
- Article number: 72331
- EAN number: 8719182120346
- For boats: 25-45' (7.5-13m)
- Motor: 1000W
- Power Supply: 12V
- Max. Linear Load: 1000kg
- Max. Lift Load: 500kg
- Lift Working Load: 150kg
- Amps Work Load: 117A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control box: Included
- Size: 6mm
- Conform: ISO 4565 / DIN 766
- Drum: With
- Weight with drum: 24kg

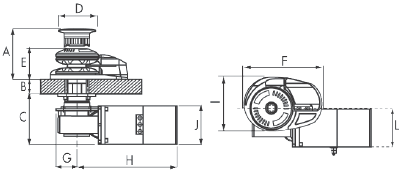

- Dimension A: 153mm
- Dimension B: 25-40mm
- Dimension C: 150mm
- Dimension D: Ø76mm
- Dimension E: 94mm
- Dimension F: 232mm
- Dimension G: 62mm
- Dimension H: 250mm
- Dimension I: 162mm
- Dimension J: Ø114mm
- Dimension L: 138mm
