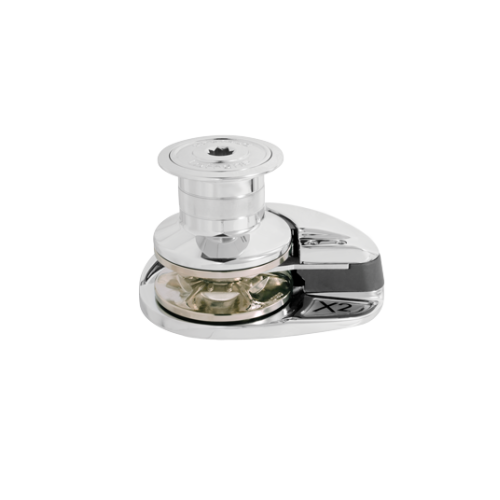

Lofrans Windlass Vertical, Model 'Project X2', 10mm/DIN, 12V, 1000W, With Drum

SKU: ALP 72333

€ 1.791,72

1-2 weeks delivery time

- +

Add to cart

The Lofrans Windlass Vertical 'Project X2' (12V version, with drum) is ideal for boats between 25-45 feet (7.5-13 meters). It features a 1000W motor, 12V power supply, and a drum for handling heavier anchoring loads. The max linear load is 1000kg, and the lift load is 500kg. It offers a line speed of 25m/min with a max of 45m/min and uses a 10mm line. The system also includes a control box for ease of use.

Description
Ask a Question

Lofrans Windlass Vertical, Model 'Project X2', 10mm/DIN, 12V, 1000W, With Drum

This windlass model is designed for boats between 25-45' (7.5-13m). Featuring a 1000W motor and a 12V power supply, it comes equipped with a drum for added convenience. It's designed to handle heavy-duty anchoring tasks.
- Article number: 72333
- EAN number: 8719182120346
- For boats: 25-45' (7.5-13m)
- Motor: 1000W
- Power Supply: 12V
- Max. Linear Load: 1000kg
- Max. Lift Load: 500kg
- Lift Working Load: 150kg
- Amps Work Load: 117A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control box: Included
- Size: 10mm
- Conform: DIN 766
- Drum: With
- Weight with drum: 24kg

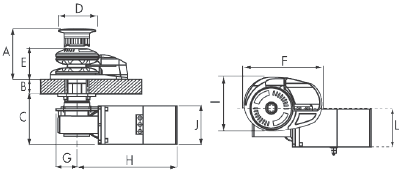

- Dimension A: 153mm
- Dimension B: 25-40mm
- Dimension C: 150mm
- Dimension D: Ø76mm
- Dimension E: 94mm
- Dimension F: 232mm
- Dimension G: 62mm
- Dimension H: 250mm
- Dimension I: 162mm
- Dimension J: Ø114mm
- Dimension L: 138mm
