Lofrans Windlass Vertical, Model 'Project X2', 10mm, 24v, 1000w, Without Drum

SKU: ALP 72343

€ 1.716,63

1-2 weeks delivery time

- +

Add to cart

The Lofrans Windlass Vertical 'Project X2' (24V, no drum) is built for boats ranging from 25-45 feet (7.5-13 meters). Powered by a 1000W motor with a 24V supply, it offers a max linear load of 1060kg and a lift load of 530kg. With a line speed of 25m/min and a maximum of 45m/min, this windlass provides excellent performance. It comes with a control box and a 10mm line, but it does not include a drum for a more compact design.

Description
Ask a Question

Lofrans Windlass Vertical, Model 'Project X2', 10mm, 24V, 1000W, Without Drum

This windlass model is designed for boats ranging from 25-45' (7.5-13m). With a powerful 1000W motor and 24V power supply, it's perfect for high-performance anchoring needs. The model does not include a drum, providing a more compact setup.
- Article number: 72343
- EAN number: 8719182120346
- For boats: 25-45' (7.5-13m)
- Motor: 1000W
- Power Supply: 24V
- Max. Linear Load: 1060kg
- Max. Lift Load: 530kg
- Lift Working Load: 160kg
- Amps Work Load: 59A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control box: Included
- Size: 10mm
- Conform: DIN 766
- Drum: Without
- Weight with drum: 24kg

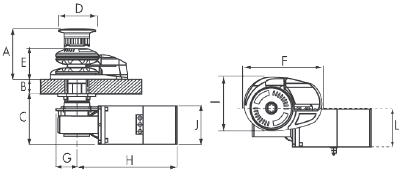

- Dimension A: 153mm
- Dimension B: 25-40mm
- Dimension C: 150mm
- Dimension D: Ø76mm
- Dimension E: 94mm
- Dimension F: 232mm
- Dimension G: 62mm
- Dimension H: 250mm
- Dimension I: 162mm
- Dimension J: Ø114mm
- Dimension L: 138mm
