SKU:
ALP 72353
€ 1.791,72
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X2' (24V version) is designed for boats between 25-45 feet (7.5-13 meters) and features a 1000W motor with a 24V power supply. This version includes a drum and offers superior lifting power, with a max linear load of 1060kg and a lift load of 530kg. It operates at a line speed of 25m/min, with a max speed of 45m/min. The 10mm line size and included control box ensure easy operation.
- Description
- Ask a Question
-

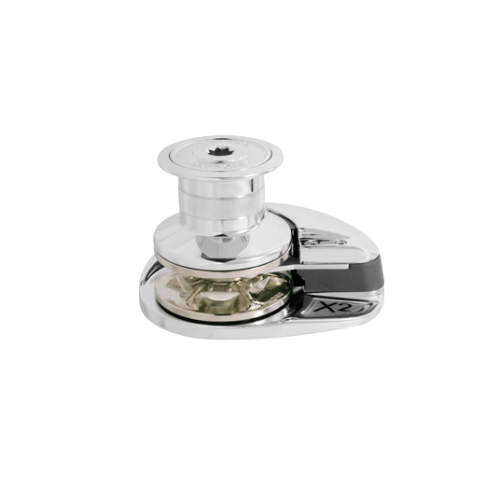

Lofrans Windlass Vertical, Model 'Project X2', 10mm, 24v, 1000w, With Drum
The Lofrans Windlass Vertical 'Project X2' (24V version) is designed for boats ranging from 25-45 feet (7.5-13 meters) and delivers superior performance with its 1000W motor. This version includes a drum, making it an ideal choice for those requiring more extensive lifting power. Here are its details:
- Article Number: 72353
- EAN Number: 8719182120346
- Suitable for boats: 25-45' (7.5-13m)
- Motor Power: 1000W
- Power Supply: 24V
- Max. Linear Load: 1060kg
- Max. Lift Load: 530kg
- Lift Working Load: 160kg
- Amps Work Load: 59A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control Box: Included
- Line Size: 10mm
- Conformity: DIN 766
- Drum: With
- Weight with Drum: 24kg

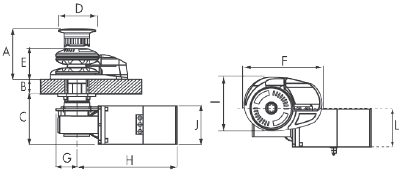

- Dimensions:
- Dimension A: 153mm
- Dimension B: 25-40mm
- Dimension C: 150mm
- Dimension D: Ø76mm
- Dimension E: 94mm
- Dimension F: 232mm
- Dimension G: 62mm
- Dimension H: 250mm
- Dimension I: 162mm
- Dimension J: Ø114mm
- Dimension L: 138mm
-
Ask a Question
