SKU:
ALP 72323
€ 1.716,63
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X2' is a robust windlass for boats between 25-45 feet (7.5-13 meters) equipped with a 1000W motor. Operating on a 12V power supply, it can handle a max linear load of 1000kg and a lift load of 500kg. The line speed is 25m/min, with a maximum speed of 45m/min. The model includes a control box and a 10mm line size. It does not come with a drum, offering a more compact setup.
- Description
- Ask a Question
-
Lofrans Windlass Vertical, Model 'Project X2', 10mm, 12v, 1000w, Without Drum
The Lofrans Windlass Vertical 'Project X2' is designed for boats between 25-45 feet (7.5-13 meters). Featuring a powerful 1000W motor, this windlass is perfect for lifting heavy loads. The system operates on 12V and comes with a control box for ease of use. Here's a detailed look at its features:
- Article Number: 72323
- EAN Number: 8719182120346
- Suitable for boats: 25-45' (7.5-13m)
- Motor Power: 1000W
- Power Supply: 12V
- Max. Linear Load: 1000kg
- Max. Lift Load: 500kg
- Lift Working Load: 150kg
- Amps Work Load: 117A
- Line Speed: 25m/min
- Max. Line Speed: 45m/min
- Control Box: Included
- Line Size: 10mm
- Conformity: DIN 766
- Drum: Without
- Weight with Drum: 24kg

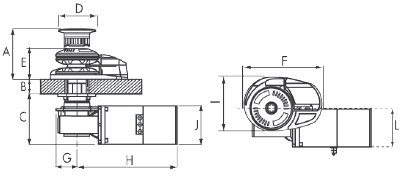

- Dimensions:
- Dimension A: 153mm
- Dimension B: 25-40mm
- Dimension C: 150mm
- Dimension D: Ø76mm
- Dimension E: 94mm
- Dimension F: 232mm
- Dimension G: 62mm
- Dimension H: 250mm
- Dimension I: 162mm
- Dimension J: Ø114mm
- Dimension L: 138mm
-
