SKU:
ALP 72278
€ 1.255,60
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X1' is a powerful 12V windlass designed for boats between 20-30 feet (6-9 meters). With an 800W motor, it offers a max linear load of 700kg and a lift load of 380kg. The windlass features a line speed of 25m/min, with a maximum line speed of 28m/min. This version does not include a drum, making it suitable for more compact installations. It comes with a control box and works with a 6mm line.
- Description
- Ask a Question
-

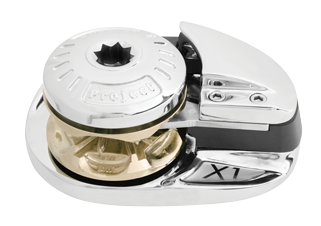

Lofrans Windlass Vertical, Model 'Project X1', 8mm, 12v, 800w, Without Drum
The Lofrans Windlass Vertical 'Project X1' is a high-quality windlass designed for boats ranging from 20-30 feet (6-9 meters). It's a robust and efficient 12V system with an 800W motor, ideal for use in various maritime conditions. Here are the key properties:
- Article Number: 72278
- EAN Number: 8719182119746
- Suitable for boats: 20-30' (6-9m)
- Motor Power: 800W
- Power Supply: 12V
- Max. Linear Load: 700kg
- Max. Lift Load: 380kg
- Lift Working Load: 100kg
- Amps Work Load: 110A
- Line Speed: 25m/min
- Max. Line Speed: 28m/min
- Control Box: Included
- Line Size: 6mm
- Conformity: ISO 4565 / DIN 766
- Drum: Without
- Weight with Drum: 14kg

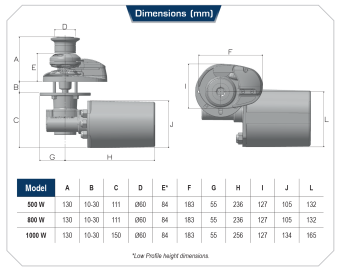

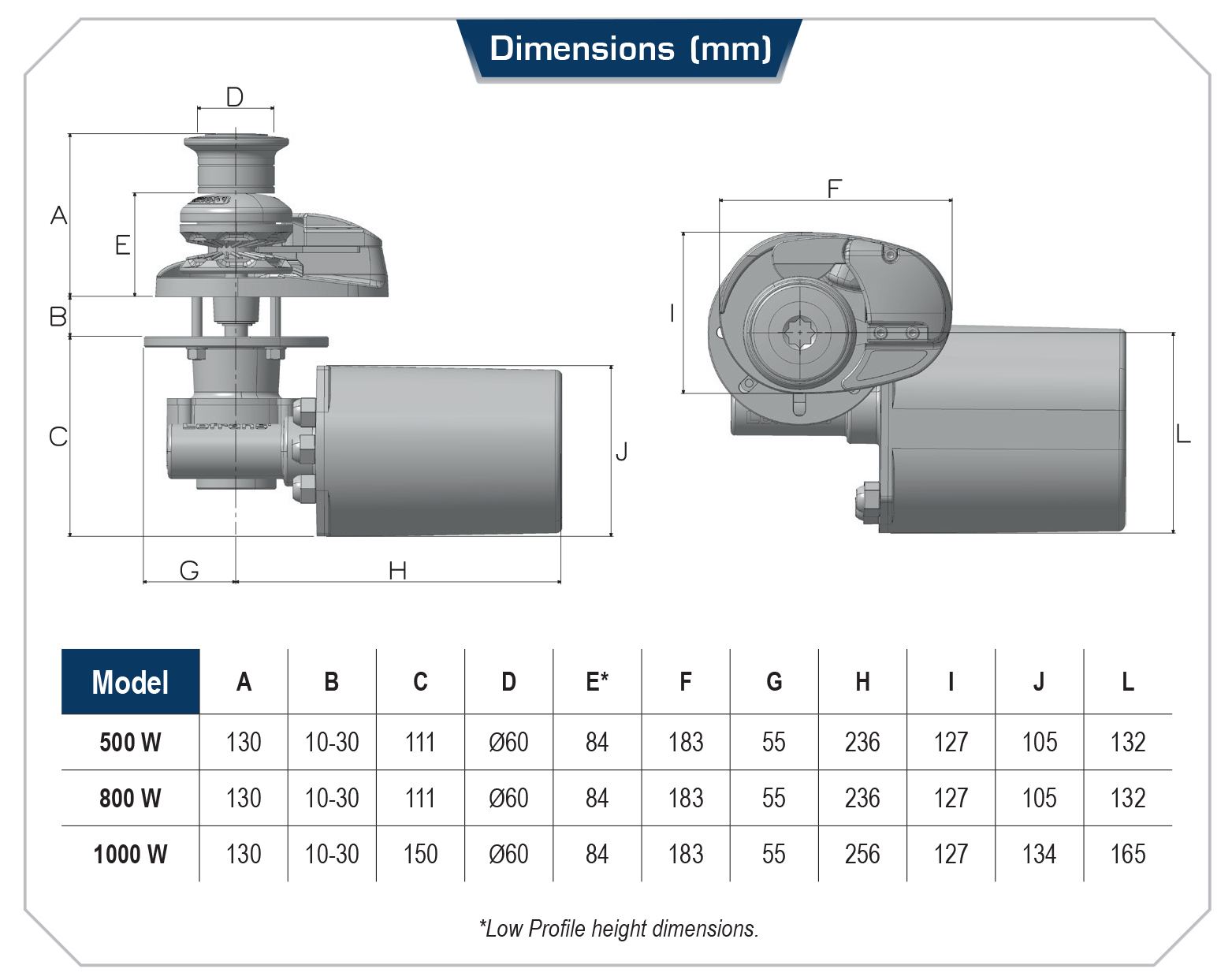

- Dimensions:
- Dimension A: 130mm
- Dimension B: 10-30mm
- Dimension C: 111mm
- Dimension D: Ø60mm
- Dimension E: 84mm
- Dimension F: 183mm
- Dimension G: 55mm
- Dimension H: 229mm
- Dimension I: 127mm
- Dimension J: Ø95mm
- Dimension L: 92mm
-
