SKU:
ALP 72288
€ 1.255,60
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X1' (8mm, 12V, 800W) with a drum is designed for boats 20-30 feet (6-9m) and features a robust 800W motor. It offers a maximum linear load of 700kg and a lift load of 380kg, with a line speed of 25m/min. This version comes with a drum for smooth and efficient operation on smaller vessels.
- Description
- Ask a Question
-

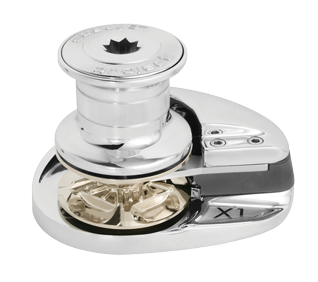

Lofrans Windlass Vertical, Model 'Project X1', 8mm, 12v, 800w, With Drum
This higher-power version of the Lofrans Windlass Model 'Project X1' offers a robust 800W motor and is designed for boats in the same size range. It comes with a drum, delivering greater lifting capacity and line speed.
- Article number: 72288
- EAN number: 8719182119746
- For boats: 20-30' (6-9m)
- Motor: 800W
- Power Supply: 12V
- Max. Linear Load: 700kg
- Max. Lift Load: 380kg
- Lift Working Load: 100kg
- Amps Work Load: 110A
- Line Speed: 25m/min
- Max. Line Speed: 28m/min
- Control Box: Included
- Size: 8mm
- Conform: ISO 4565 / DIN 766
- Drum: With
- Weight with Drum: 14kg

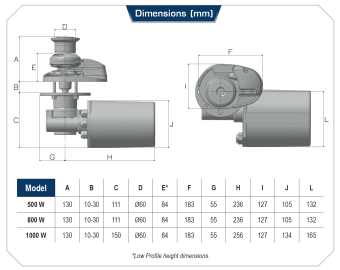

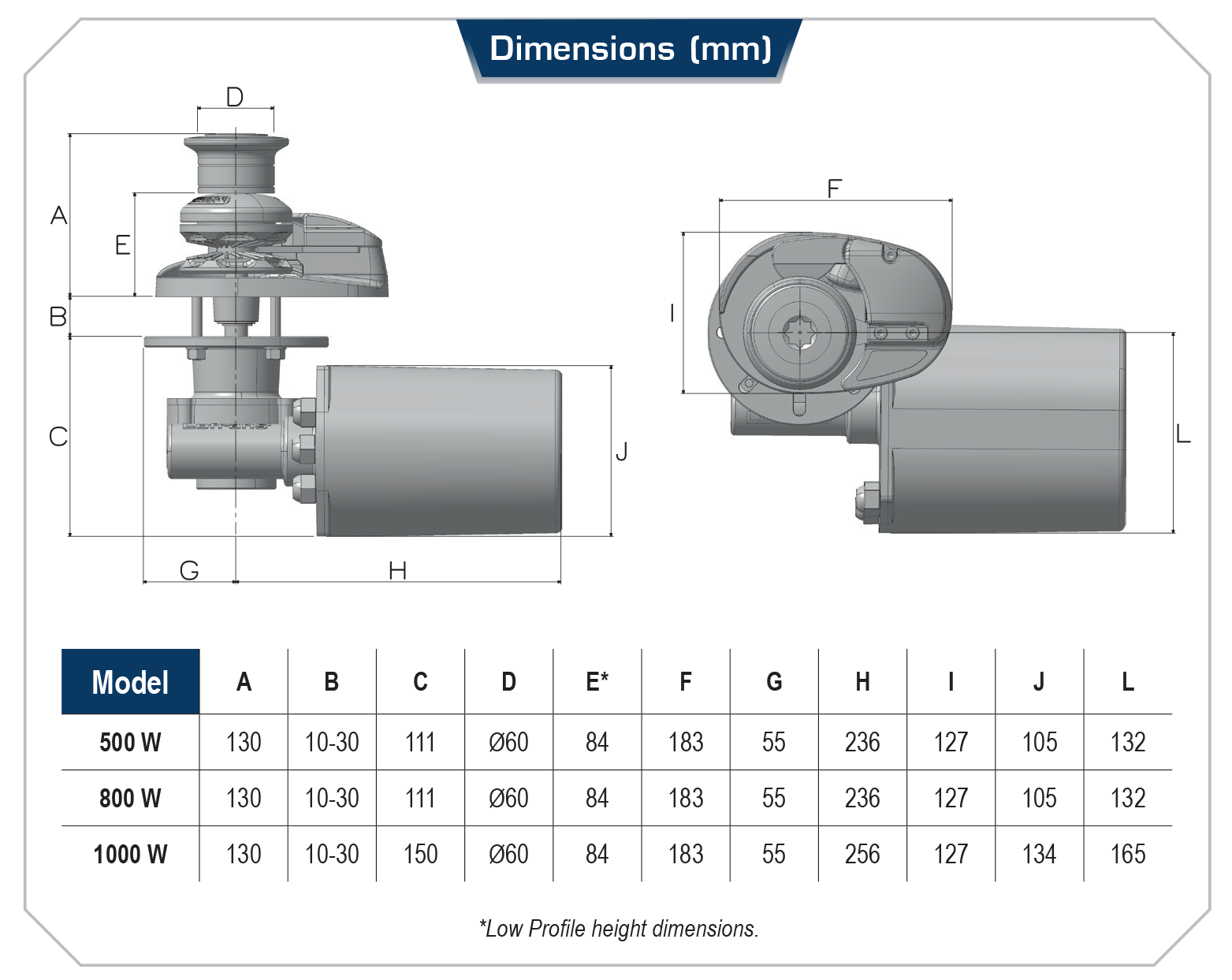

- Dimensions:
- A: 130mm
- B: 10-30mm
- C: 111mm
- D: Ø60mm
- E: 84mm
- F: 183mm
- G: 55mm
- H: 229mm
- I: 127mm
- J: Ø95mm
- L: 92mm
-
