SKU:
ALP 72228
€ 1.102,15
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X1' (8mm, 12V, 500W) without a drum offers the same reliable performance as the version with a drum, designed for boats 20-30 feet (6-9m). It delivers a maximum linear load of 630kg and a lift load of 345kg, with a line speed of 23m/min, making it a powerful option for efficient marine operations.
- Description
- Ask a Question
-

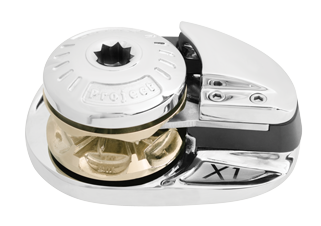

Lofrans Windlass Vertical, Model 'Project X1', 8mm, 12v, 500w, Without Drum
This version of the Lofrans Windlass Model 'Project X1' is also designed for boats 20-30' (6-9m), featuring the same 500W motor but without the drum. It provides excellent lifting capacity and speed for your marine needs.
- Article number: 72228
- EAN number: 8719182119746
- For boats: 20-30' (6-9m)
- Motor: 500W
- Power Supply: 12V
- Max. Linear Load: 630kg
- Max. Lift Load: 345kg
- Lift Working Load: 95kg
- Amps Work Load: 60A
- Line Speed: 23m/min
- Max. Line Speed: 26m/min
- Control Box: Included
- Size: 6mm
- Conform: ISO 4565 / DIN 766
- Drum: Without
- Weight with Drum: 12kg

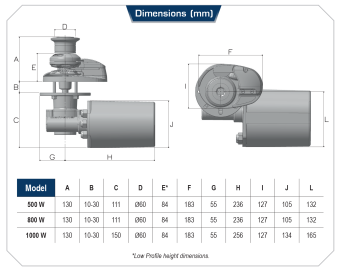

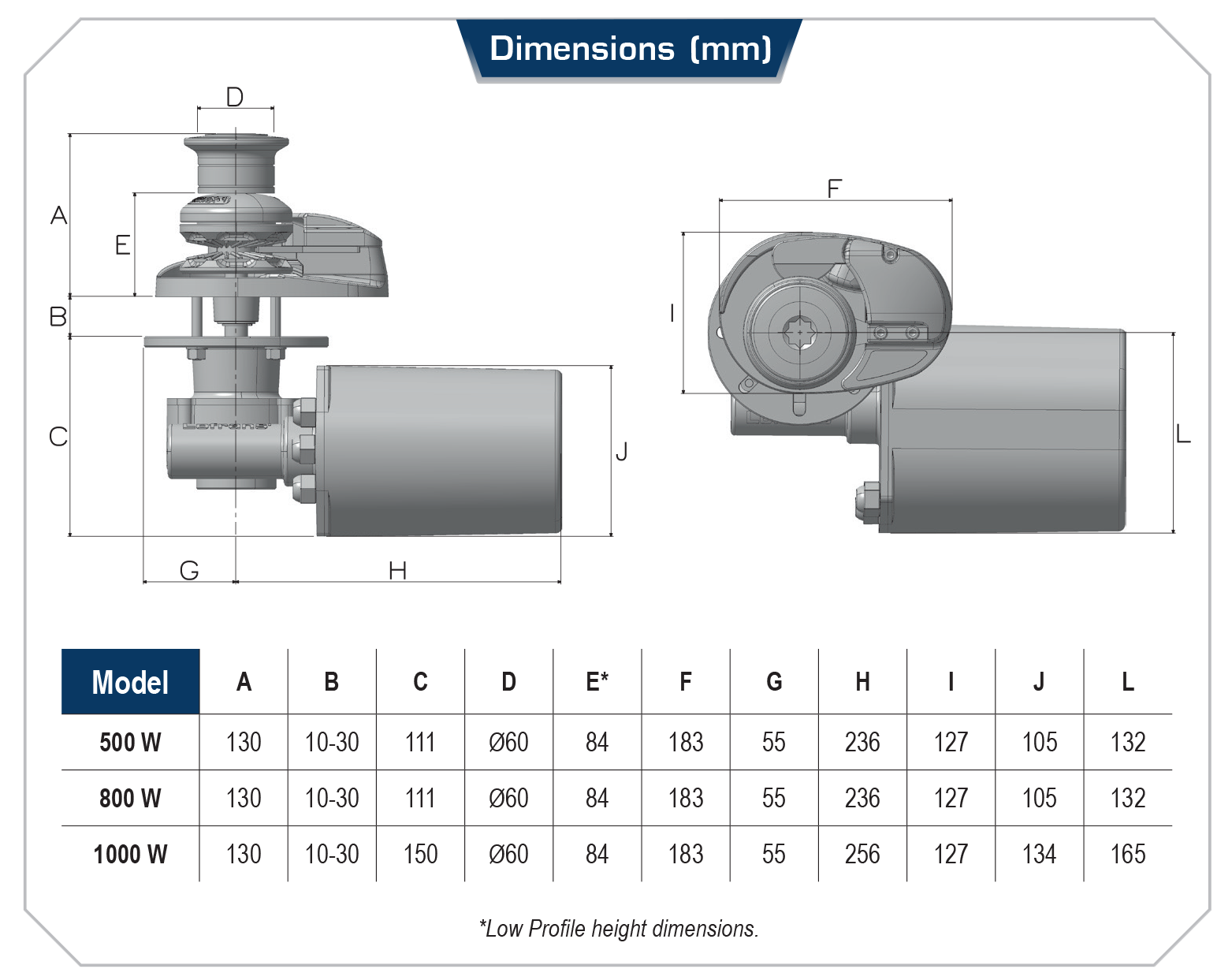

- Dimensions:
- A: 130mm
- B: 10-30mm
- C: 111mm
- D: Ø60mm
- E: 84mm
- F: 183mm
- G: 55mm
- H: 225mm
- I: 127mm
- J: Ø82mm
- L: 85mm
-
