SKU:
ALP 72238
€ 1.227,39
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X1' (8mm, 12V, 500W) with a drum is perfect for boats between 20-30 feet (6-9m). With a 500W motor, it provides reliable performance, handling a maximum linear load of 630kg and a lift load of 345kg. The included drum ensures smooth and efficient operation at a line speed of 23m/min.
- Description
- Ask a Question
-

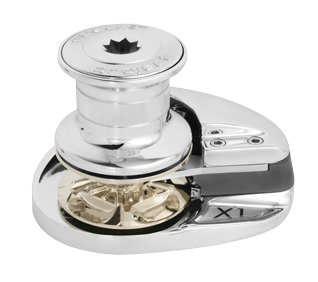

Lofrans Windlass Vertical, Model 'Project X1', 8mm, 12v, 500w, With Drum
This Lofrans Windlass Model 'Project X1' is designed for boats ranging from 20-30' (6-9m) and is equipped with a 500W motor, offering reliable performance with a 12V power supply. The windlass is ideal for a variety of marine applications.
- Article number: 72238
- EAN number: 8719182119746
- For boats: 20-30' (6-9m)
- Motor: 500W
- Power Supply: 12V
- Max. Linear Load: 630kg
- Max. Lift Load: 345kg
- Lift Working Load: 95kg
- Amps Work Load: 60A
- Line Speed: 23m/min
- Max. Line Speed: 26m/min
- Control Box: Included
- Size: 8mm
- Conform: ISO 4565 / DIN 766
- Drum: With
- Weight with Drum: 12kg

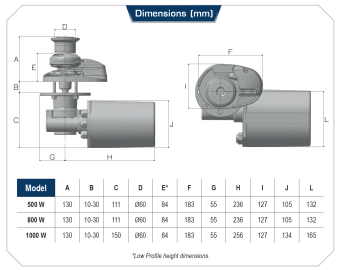

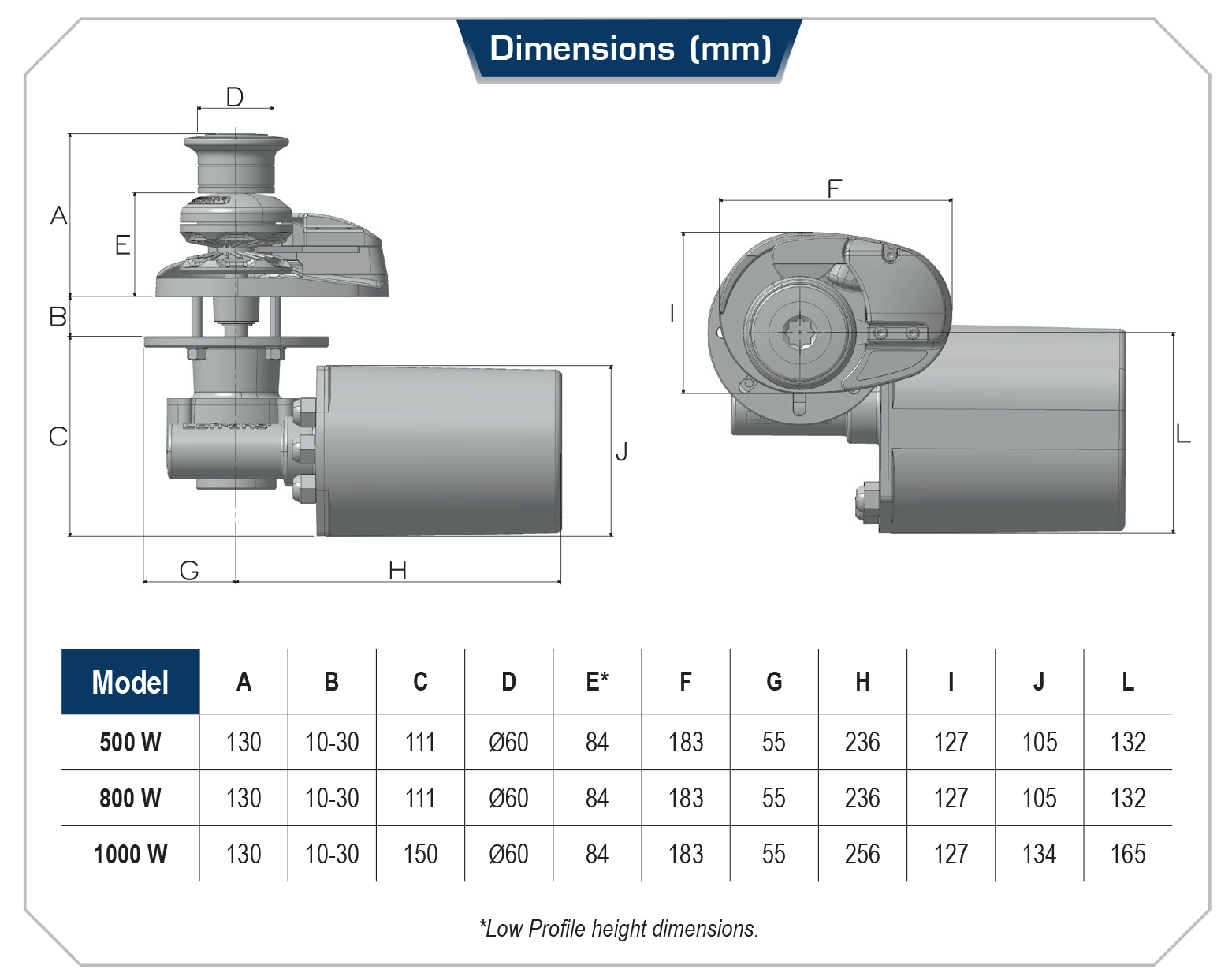

- Dimensions:
- A: 130mm
- B: 10-30mm
- C: 111mm
- D: Ø60mm
- E: 84mm
- F: 183mm
- G: 55mm
- H: 225mm
- I: 127mm
- J: Ø82mm
- L: 85mm
-
